For the backend SAP NetWeaver ABAP system to trust the WD client certificate, it must be imported into the PSE. I am not 100% sure about this, as importing the root CA certificate should also do the trick.
Transaction: STRUST
Change to edit mode: ![]()
Select SSL standard server

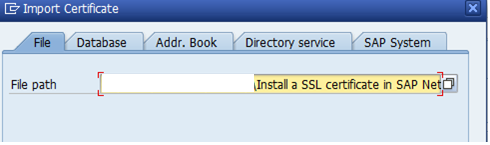

Import WD certificate of Client PSE.

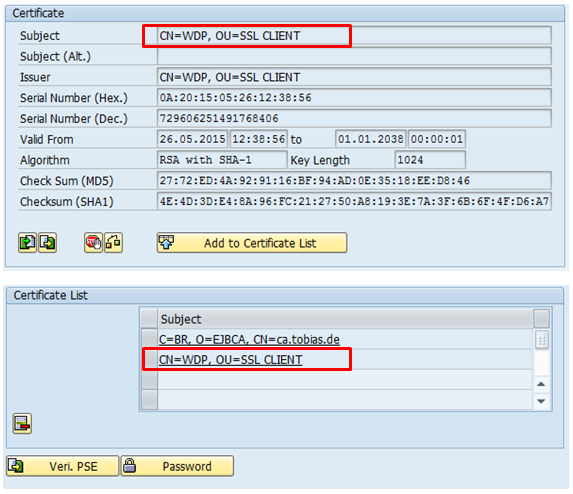

Result

Save
