Note: 1st published on SCN on 11.6.2012

With ab, for Web Dynpro applications

In my blog about performance load testing with ab SAP Mentor Anton Wenzelhuemer raised a question if and how you can use ab to test a specific action/event in WD applications. That’s a good question as these events besides input validation normally trigger a connection to the backend and change the context node and attributes. And that is the part where you can improve the performance of the application.

Now, is it possible to test a user action with ab? To remind you, ab is used to test a single resource. The intent is to see how fast your web server can serve a HTML page and test how different configuration parameters affect the performance. You cannot test the flow of an action (load page, press button, get result). To find out if ab can be used to test a WD application, you have to find out what happens when you trigger the event.

Sample WDJ application

I build an example WDJ application using the steps outlined here: it’s and Web Dynpro Java application containing a table that shows the data of the get flight BAPI. For testing forms that require an input you cannot use ab (meaning: setting the input and call the form action), but you can use ab to simulate actually what happens after the input is set and the send button is clicked: the POST action of the browser.

[For testing the form from command line: to insert the airline Id and press the button, use curl, as curl allows interacting with forms. But curl is not a load testing tool (you may look at curl-loader).]

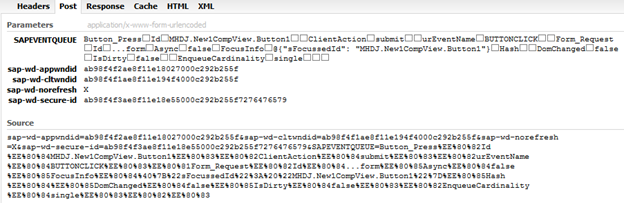

To make things easy for me I implemented a button (named: Generic) that sets the input of the airline to LH, triggers an event that causes the controller to call the BAPI and return the table content. Clicking this button I can record the POST action with Firebug:

http://nwce1:50000/webdynpro/resources/tobias.com/test~wdj~arfc/FlightListApp?SAPEVENTQUEUE=Button_Press%EE%80%82Id%EE%80%84MHDJ.New1CompView.Button1%EE%80%83%EE%80%82ClientAction%EE%80%84submit%EE%80%83%EE%80%82urEventName%EE%80%84BUTTONCLICK%EE%80%83%EE%80%81Form_Request%EE%80%82Id%EE%80%84…form%EE%80%85Async%EE%80%84false%EE%80%85FocusInfo%EE%80%84%40%7B%22sFocussedId%22%3A%20%22MHDJ.New1CompView.Button1%22%7D%EE%80%85Hash%EE%80%84%EE%80%85DomChanged%EE%80%84false%EE%80%85IsDirty%EE%80%84false%EE%80%83%EE%80%82EnqueueCardinality%EE%80%84single%EE%80%83%EE%80%82%EE%80%83&sap-wd-appwndid=ab98f4f2ae8f11e18027000c292b255f&sap-wd-cltwndid=ab98f4f1ae8f11e194f4000c292b255f&sap-wd-norefresh=X&sap-wd-secure-id=ab98f4f3ae8f11e18e55000c292b255f7276476579

Replaying the POST in the browser gives me the content WDJ returns to the browser:

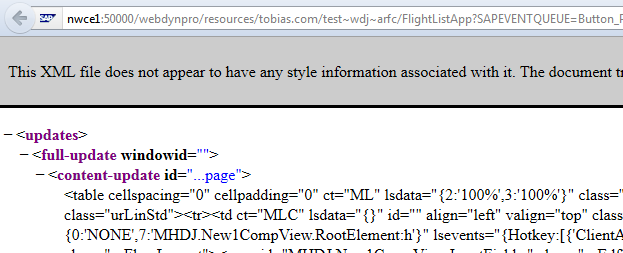

Response in the browser

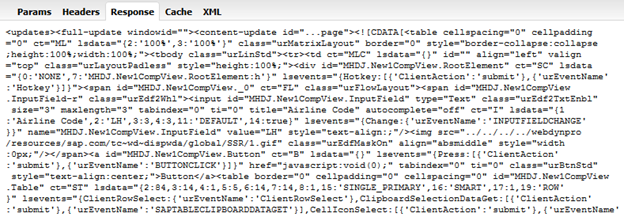

Response in firebug

The returned content is an XML file containing the data for the table. As you can see, WDJ return the table content as HTML. [Note: Whoever at SAP was or is or will be responsible for this: why? And please stop doing this. This should be done via AJAX and JSON / XML, and definitely you should not transfer HTML. That makes me wonder if the HTML transferred back changes between browsers.]

Conclusion: That POST triggers the server side event and returns the right content. This POST is what ab should send to the server.

How to get ab to send the exact same POST? For this ab offers 2 parameters that have to be used together: -p and –T. The parameter –p defines a file that contains the data to post and –T the content type. Saving the POST data in a file named postwdj.txt and set –T to application/x-www-form-urlencoded; charset=UTF-8.

Using only these two parameters won’t work with WD applications as WD checks the header for the user agent. The browser has to send a user agent that is supported by WD. To set the user agent for ab to IE (I use IE to be on the safe side as support for other browsers heavily depends on your SPS):

-H “User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1)”.

The next step is to authenticate the session if the application needs an authenticated user. How exactly you do authentication depends on your server configuration, you can enable basic authentication with ab or send the JSESSION (or MYSAPSSO2) cookie to the WD app: -C JSESSION=<value>

Setting the parameters:

ab -v 4 -n 1 -p postwdj.txt -T “application/x-www-form-urlencoded; charset=UTF-8”

-H “User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1)”

-C JSESSIONID=abc123

http://nwce1:50000/webdynpro/resources/tobias.com/test~wdj~arfc/FlightListApp

[Reminder: all these parameters I retrieved from what firebug recorded.]

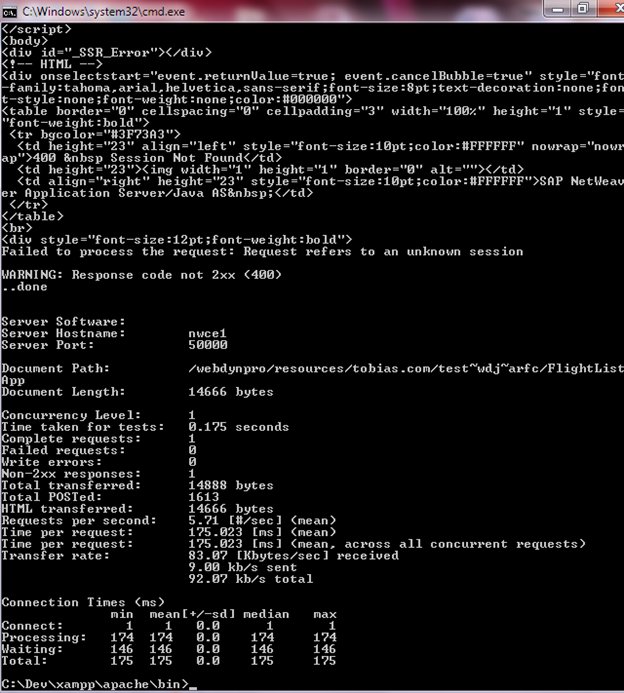

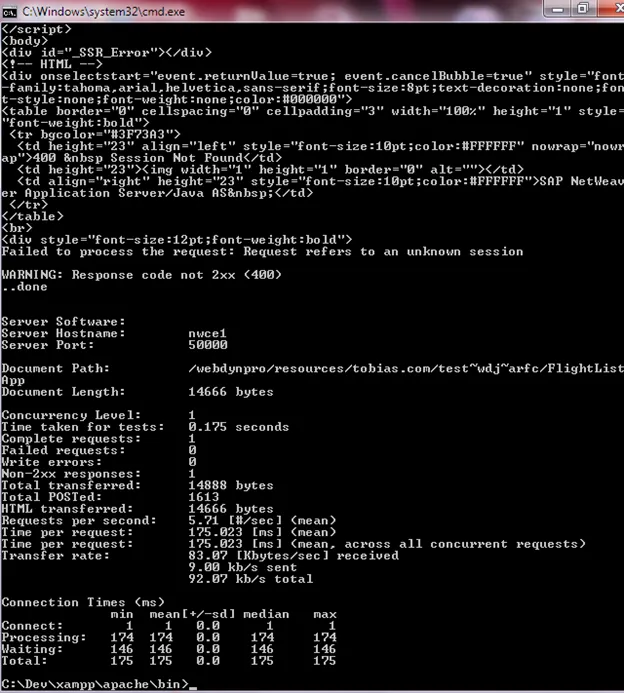

Returns:

Did it worked? No. Why? “Request referes to an unkown session”. Unkown session? Yes, even with JSESSIONID as the AS Java session identifier, WD is more complex. Take a look at the complete POST data:

sap-wd-appwndid=09c61082af0811e1a8d7000c292b255f&sap-wd-cltwndid=09c61081af0811e1adf6000c292b255f&sap-wd-norefresh=X&sap-wd-secure-id=09c61083af0811e19571000c292b255f6987261425&SAPEVENTQUEUE=Button_Press…

There are several WD specific sessions involved. And these expire too. Make sure that the POST data you get from firebug is valid when you execute ab. With updated POST data:

Now, is that the result expected? Sometimes ab outputs the first lines of the response, sometimes not. To really know what the server returned I use Wireshark. Wireshark allows you to trace the TCP packages and to view the transmitted HTML. The image below shows the result of a not working POST, as the web page of the WD app is returned:

HTTP 200, but the POST was not triggered correctly, so the WD application returns the default view:

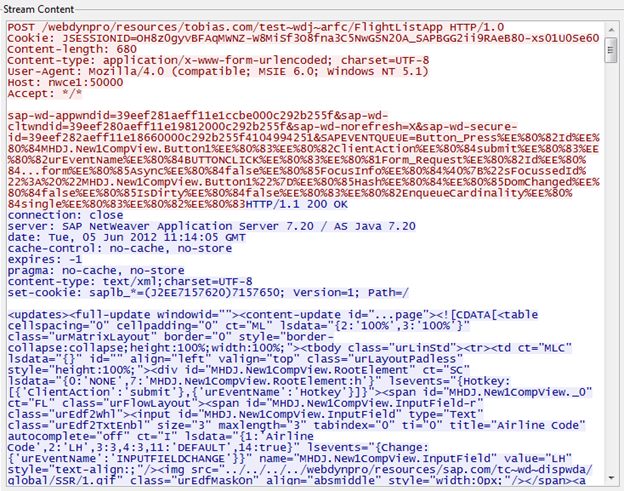

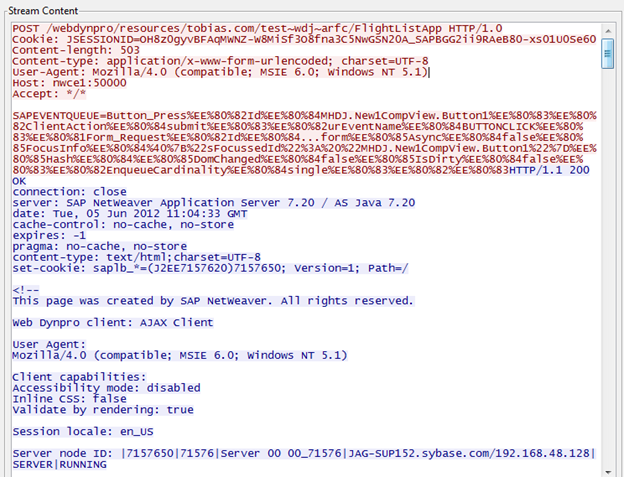

A Wireshark trace of a successful ab POST:

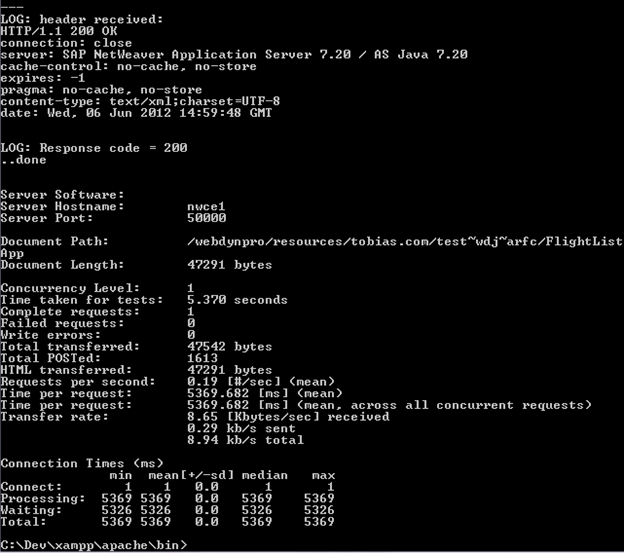

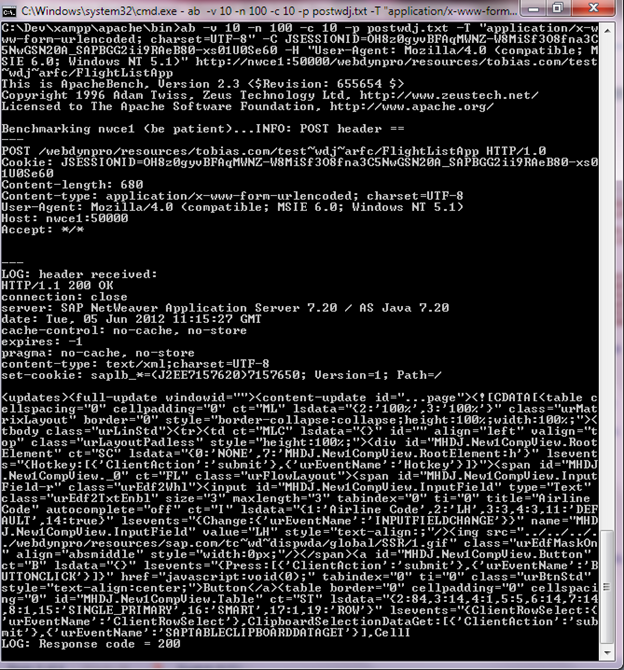

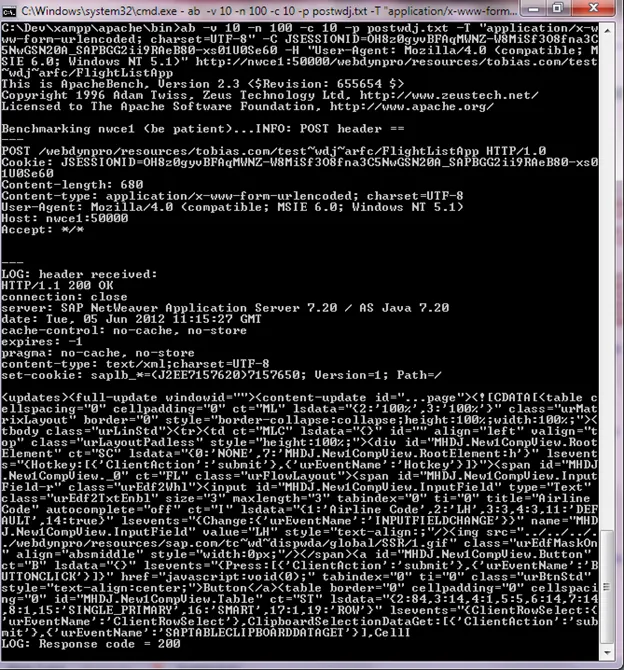

And the result at the command line when ab prints the returned message:

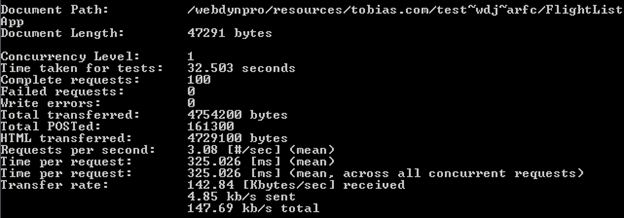

Running the test with 1 thread 100 times:

  • Worked fine

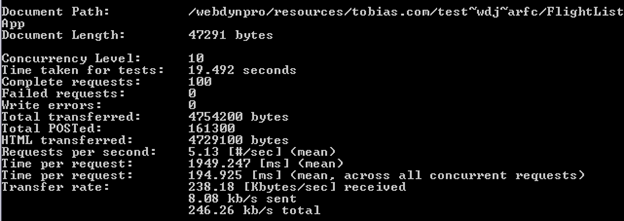

10 threads:

  • Worked

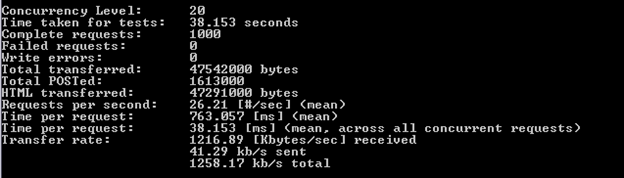

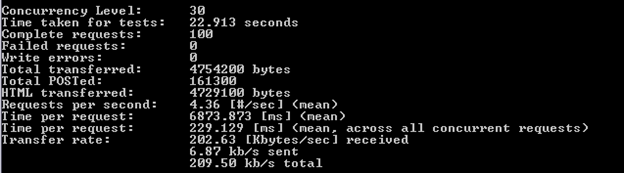

Running the test with 30 thread 100 times:

  • Worked

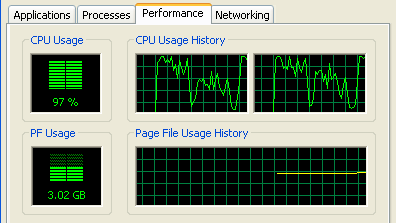

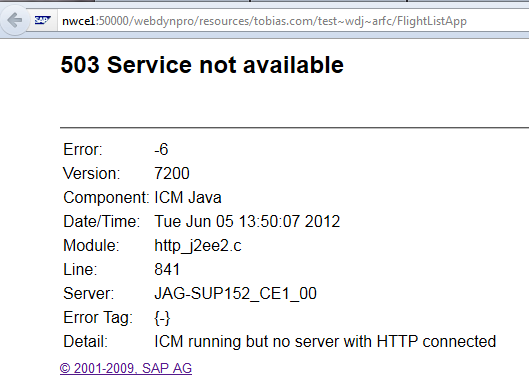

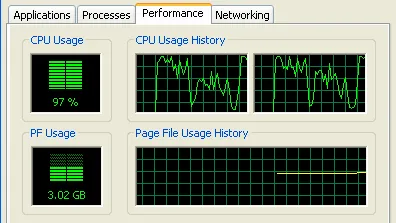

The problem is that too many connections to the application were made, and the session was never terminated, thus causing more and more memory consumption until my server crashed. There is a SAP note explaining this behavior and that in the end of the test run you should terminate the session. With ab this won’t work.

While ab allows you to test web and portal applications quite easily, it is not flexible enough for testing WD applications. Instead of being able to just run the test, you have to get the POST data and run the test shortly after. What ab is missing is to submit forms dynamically (like curl) or to build the POST data based on what the server expects. But for that you need to consider the flow of the application, something ab is not aware of. For testing complex web applications there is a handy tool also available from Apache: jMeter.
