Afaria – Test NDES certificate template

Published by Tobias Hofmann on

2 min read

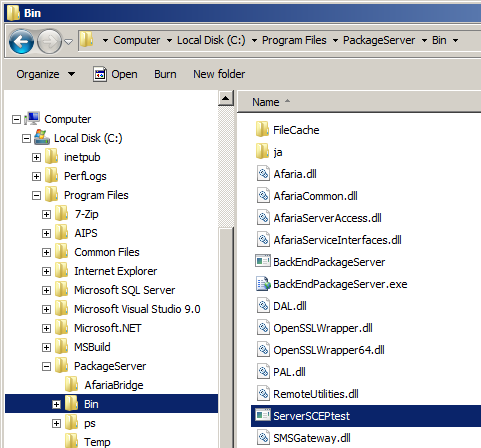

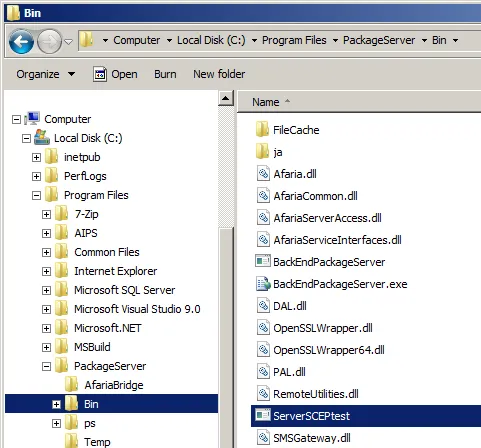

Easiest way to test SCEP with Afaria is to make use of the delivered ServerSCEPtest application. This application comes with Afaria`s PackageServer component. It can be found in the bin directory of the package server.

The test application is a Windows executable that executes the SCEP process through Afaria. You have two options available for the test:

  1. Provisioning Server
  2. Package Server

I am going to execute the SCEP/NDES test using the package server. This is the Afaria component used by all clients to receive a client certificate for apps.

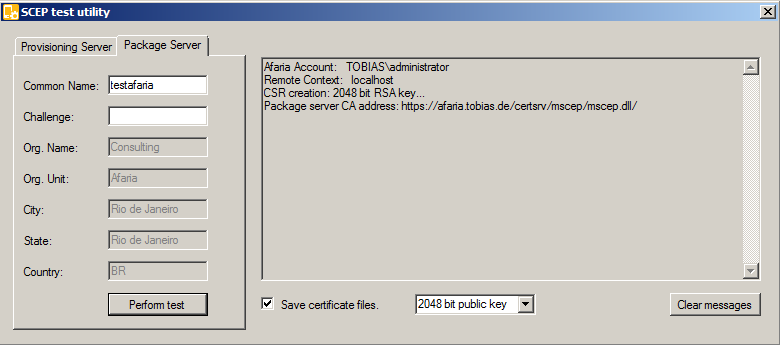

To run the test, at least the common name value must be filled in. This is the CN= part of the certificate. Normally, this is your user id. Unfortunately, the test tool is limited to 2048 bit key (Afaria SP8) and does not select you higher or custom values. To run the test, just select perform test button. The additional CSR informations like city, org, etc are taken from the package server configuration. These values are given by the Afaria admin.

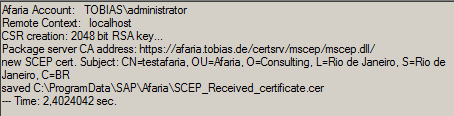

The status of the SCEP process is shown in the log area. You can see that the CSR is created and send to the package server CA. After the test ran without errors, the returned certificate is saved to: C:\ProgramData\SAP\Afaria.

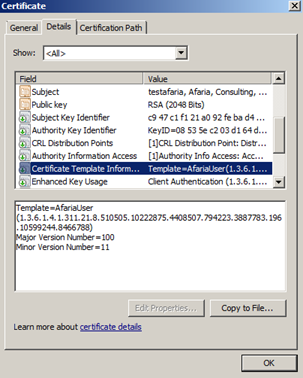

The see and validate the value of the new certificate, you can use the Crypto Shell Extensions of Windows Server.

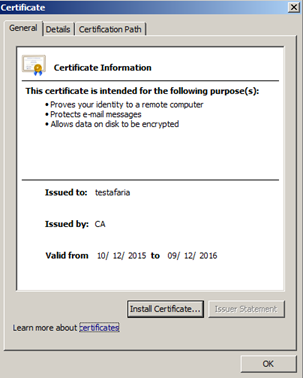

The certificate was issued by the CA: CA. Lifetime is one year. And the template is AfariaUser. This matches exactly how the NDES template was configured.

To be 100% sure, the CA can be consulted. Normally, all issued certificates are stored there and can be consulted. Taking a look into the issued certificate list, I can see that a new certificate by the NDES user was issued using as a template AfariaUser. Therefore, the new NDES configuration is validated and working.
