Create an oData service from CDS

Published by Tobias Hofmann on

2 min read

This blog is about how to create an oData service from a CDS View. The code and example follow closely SAP Help documentation and the included example on this topic:

I only cut the documentation overhead and make the information available in a single blog. As you can see in the above two links, the task consists of 2 steps:

  1. Create CDS View
  2. Expose OData service

For the example, I used NW ABAP 7.52 Developer Edition and ABAP in Eclipse (ADT) tools. If you have a “real” SAP NW ABAP System available, you may also implement the sample service there.

Create CDS Data Source

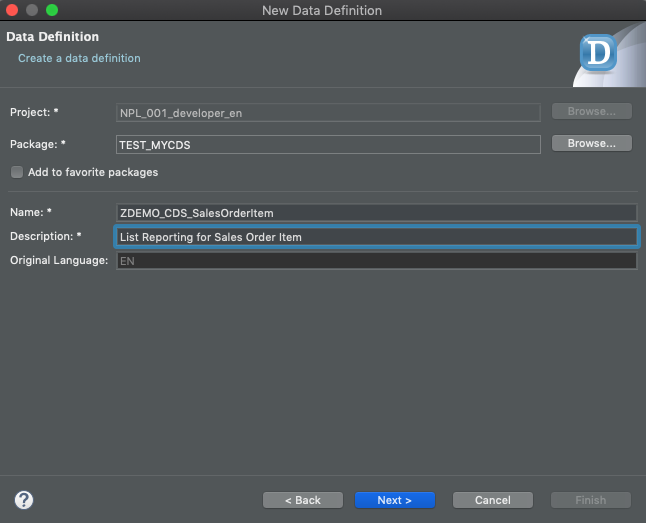

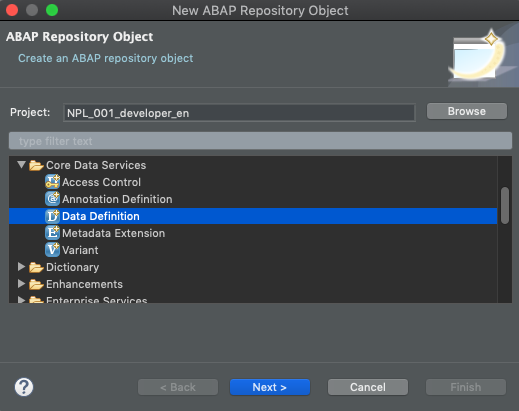

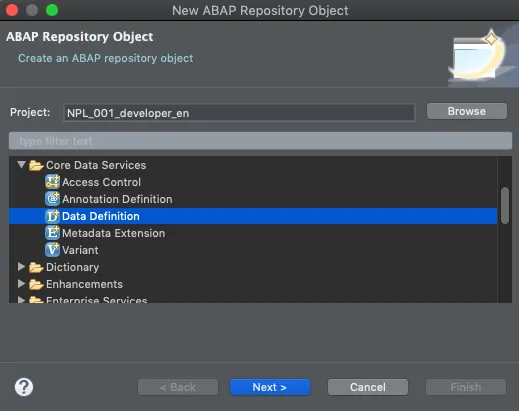

In ADT, create a new CDS Data Definition.

Name: ZDEMO_CDS_SalesOrderItem
Description: List Reporting for Sales Order Item

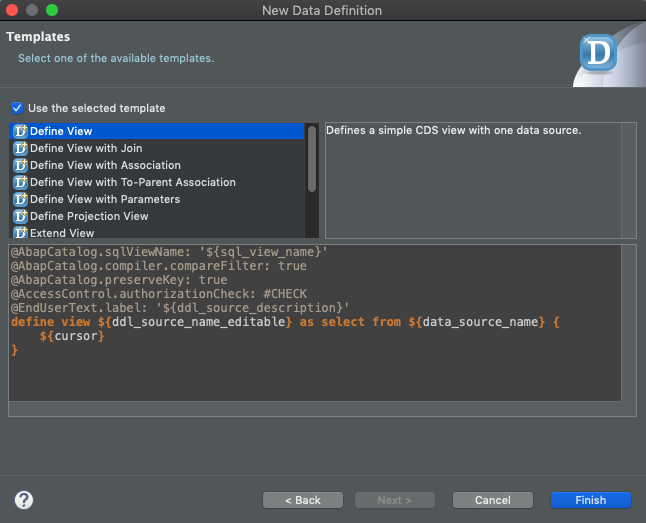

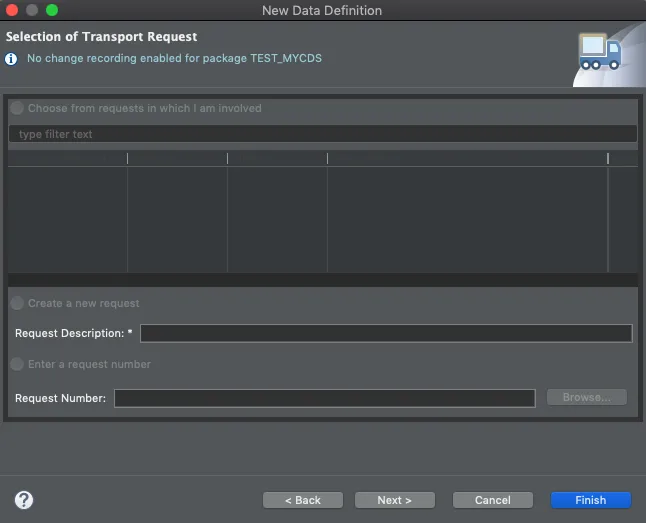

Click on next to go throught the wizard.

Paste the following code in the new created file: https://github.com/tobiashofmann/cds_sample_service/blob/master/ZDEMO_CDS_SalesOrderItem

@AbapCatalog.sqlViewName: 'ZDEMO_SOI_001'
@AbapCatalog.compiler.compareFilter: true
@AbapCatalog.preserveKey: true
@AccessControl.authorizationCheck: #CHECK
@EndUserText.label: 'List Reporting for Sales Order Item'
@OData.publish: true

define view ZDEMO_CDS_SalesOrderItem as select from SEPM_I_SalesOrderItem_E as Item {
  key Item.SalesOrder as SalesOrderID,
  key Item.SalesOrderItem as ItemPosition,
  Item._SalesOrder._Customer.CompanyName as CompanyName,
  Item.Product as Product,
  @Semantics.currencyCode: true
  Item.TransactionCurrency as CurrencyCode,
  @Semantics.amount.currencyCode: 'CurrencyCode'
  Item.GrossAmountInTransacCurrency as GrossAmount,
  @Semantics.amount.currencyCode: 'CurrencyCode'
  Item.NetAmountInTransactionCurrency as NetAmount,
  @Semantics.amount.currencyCode: 'CurrencyCode'
  Item.TaxAmountInTransactionCurrency as TaxAmount,
  Item.ProductAvailabilityStatus as ProductAvailabilityStatus
}

Save and activate the CDS View.

Activate OData Service

The above created a CDS Data Definition and when activating, some magic happened. What is missing is to activate the OData service. ADT won’t do this for you, this needs to be done manually in the Gateway System.

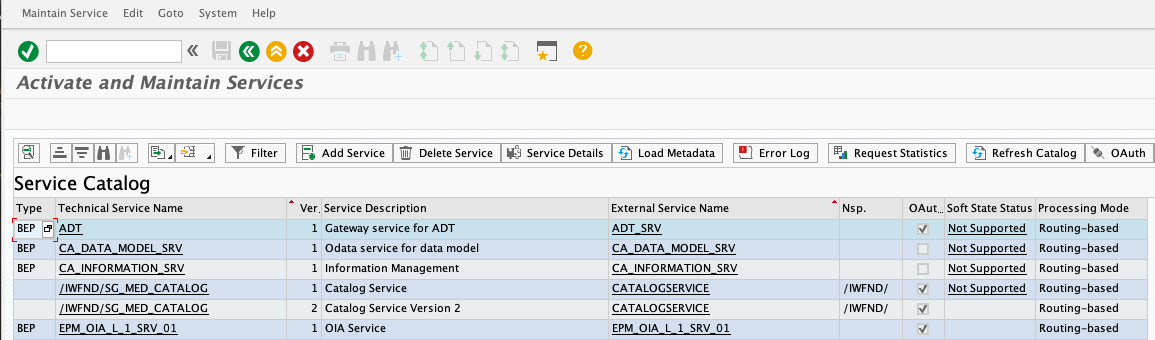

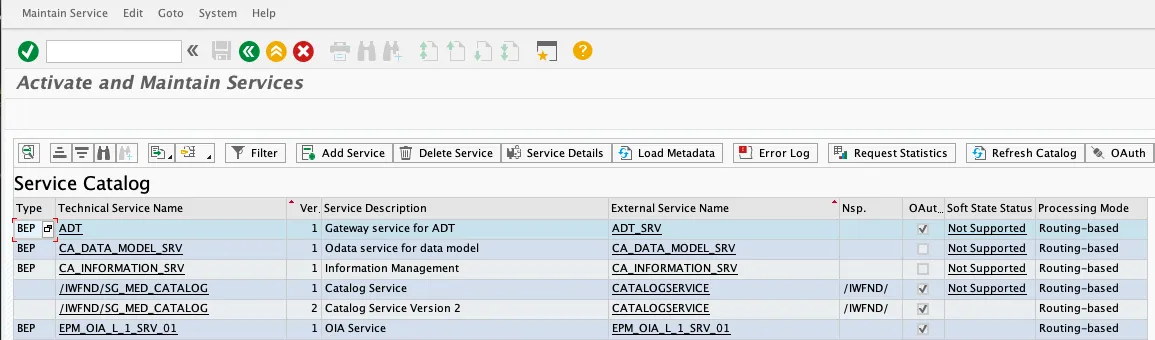

Tx: /n/IWFND/MAINT_SERVICE

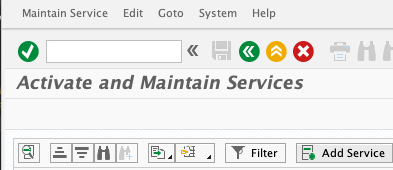

Click on Add Service

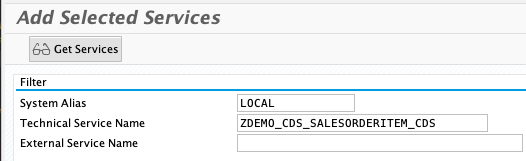

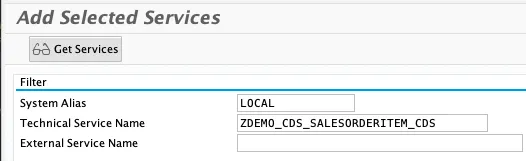

Search for services in the local system.

System Alias: LOCAL
Technical Service Name: ZDEMO_CDS_SALESORDERITEM_CDS

Click on Get Services

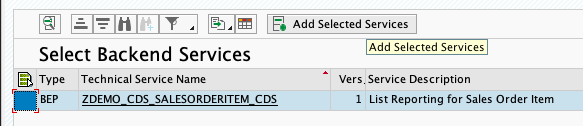

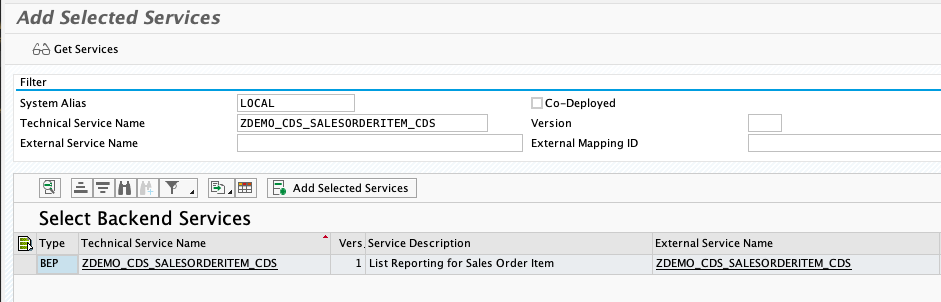

The CDS Service is shown.

Select the service and click on Add selected Services

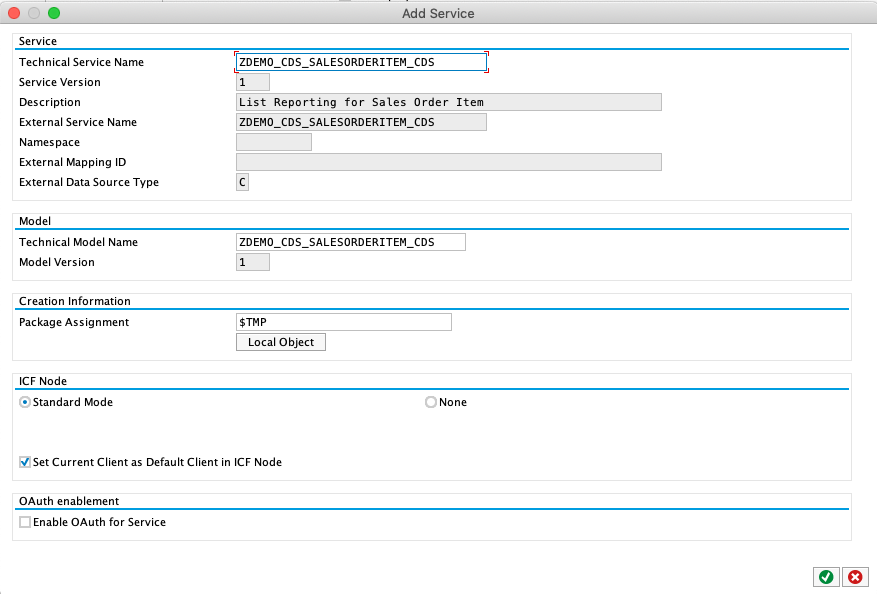

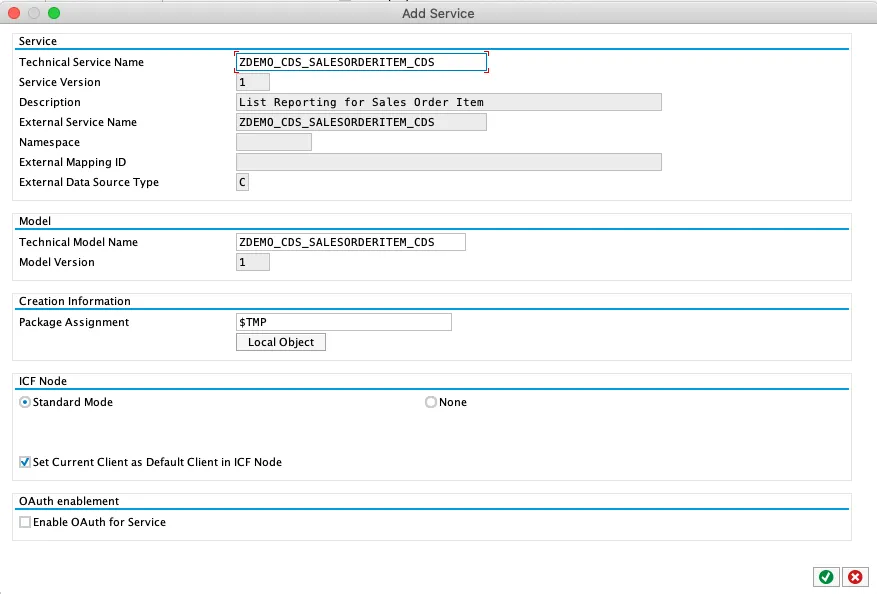

Add service dialog.

Package Assignment: $TMP (click on Local Object)

Test service

After performing the above steps, the CDS View is implemented and the OData service exposing the data is activate and can be used. You may now test the service to see if everything is working as expected.

Tx: /n/IWFND/MAINT_SERVICE
Select the service: ZDEMO_CDS_SALESORDERITEM_CDS

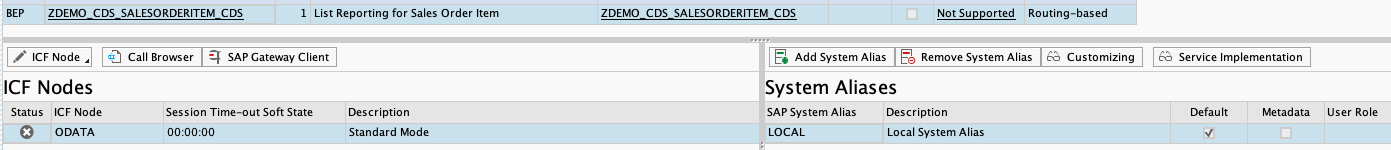

Click on SAP Gateway Client. To test the service, use the URL:

/sap/opu/odata/sap/ZDEMO_CDS_SALESORDERITEM_CDS/$metadata

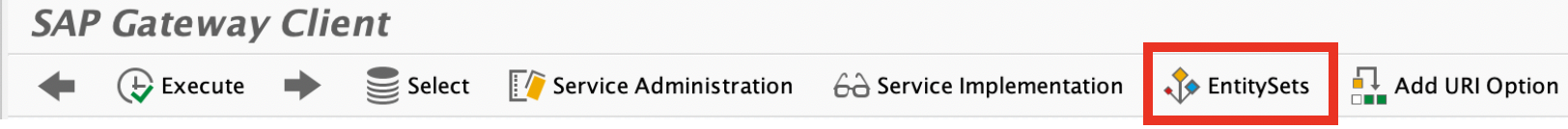

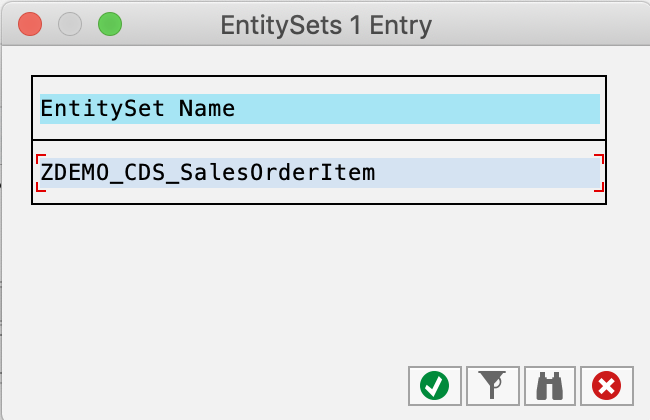

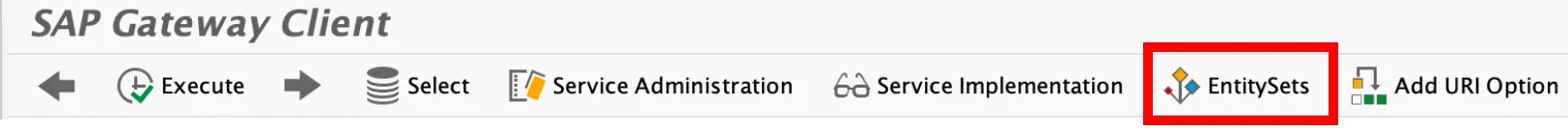

Available entity sets can be seen by clicking on EntitySets.

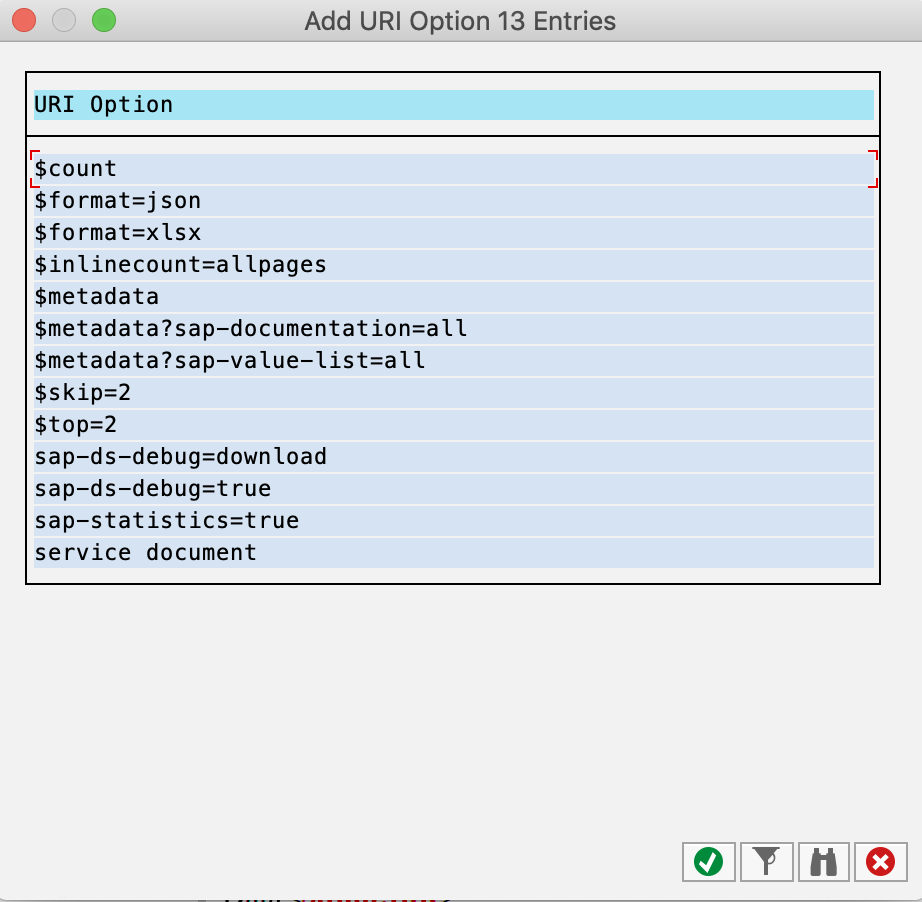

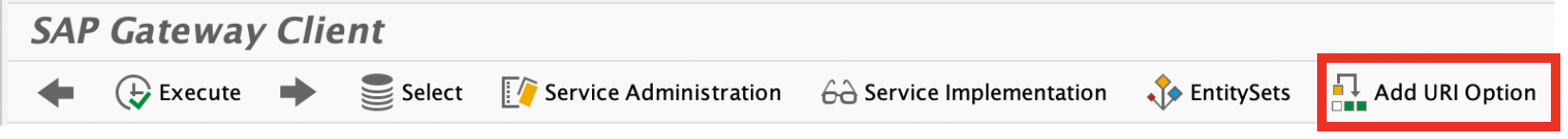

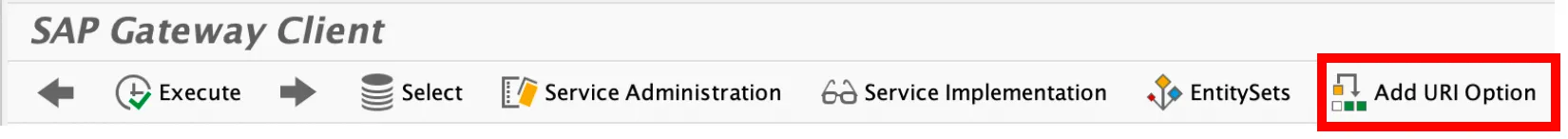

Available options by clicking on Add URI Option

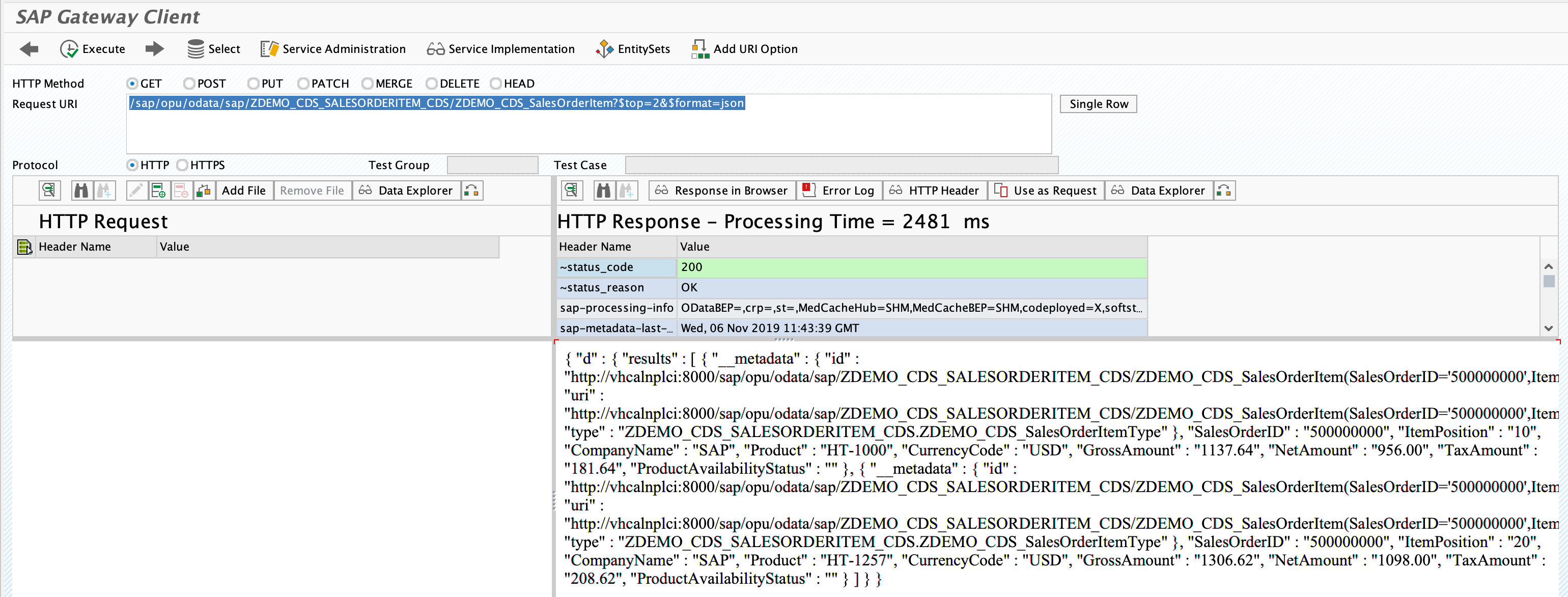

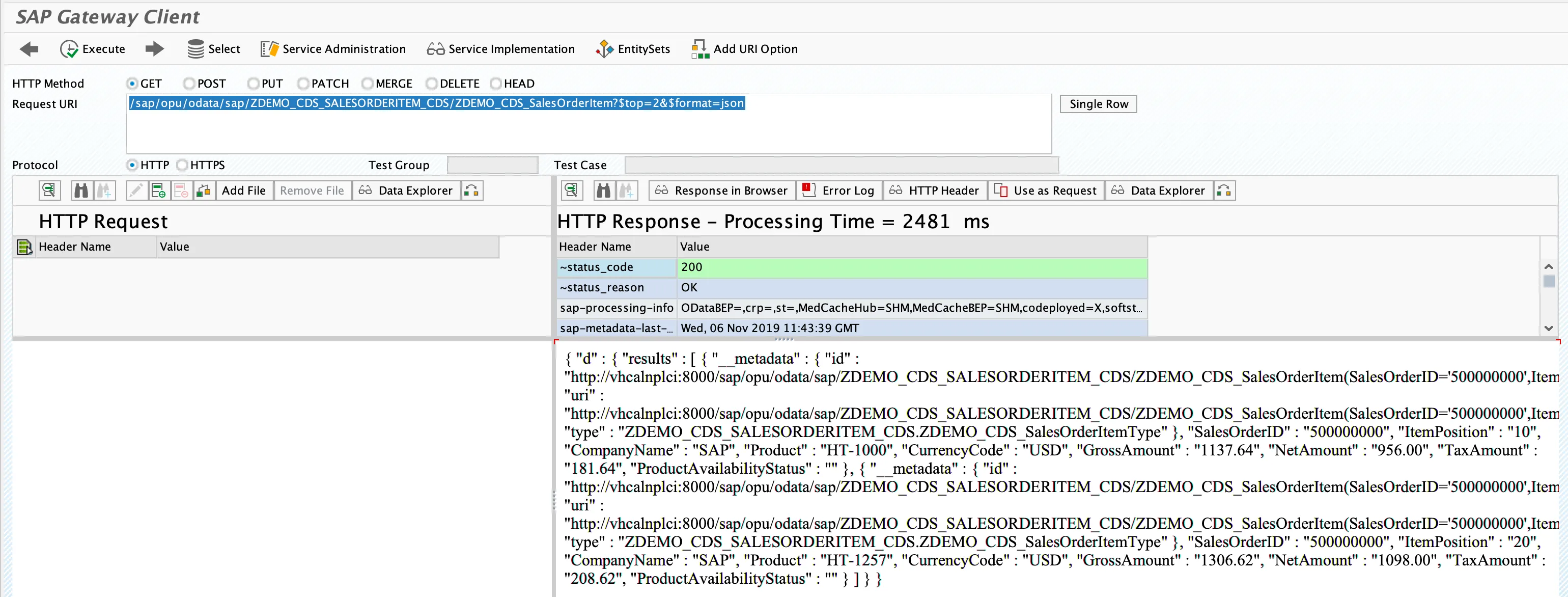

The see the top 2 results in json, the URL is:

/sap/opu/odata/sap/ZDEMO_CDS_SALESORDERITEM_CDS/ZDEMO_CDS_SalesOrderItem?$top=2&$format=json
