SAP Gateway – Activate SAML 2.0 support

Published by Tobias Hofmann on

1 min read

Before you can start to configure SAML 2.0 in SAP NetWeaver ABAP, SAML 2.0 support must be activated. The saml2 Web Dynpro ABAP app is used for this. In the NPL Developer Edition system the app is activated by default and can be accessed by opening this URL in the browser:

https://vhcalnplci:44300/sap/bc/webdynpro/sap/saml2?sap-client=001

In a more generic way, the URL is:

/sap/bc/webdynpro/sap/saml2?sap-client=nnn

Start SAML 2.0 configuration

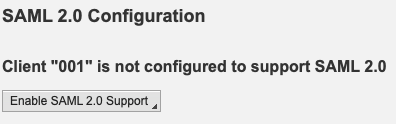

Open the URL in the browser and the SAML 2.0 configuration wizard starts. First, enable SAML 2.0 support.

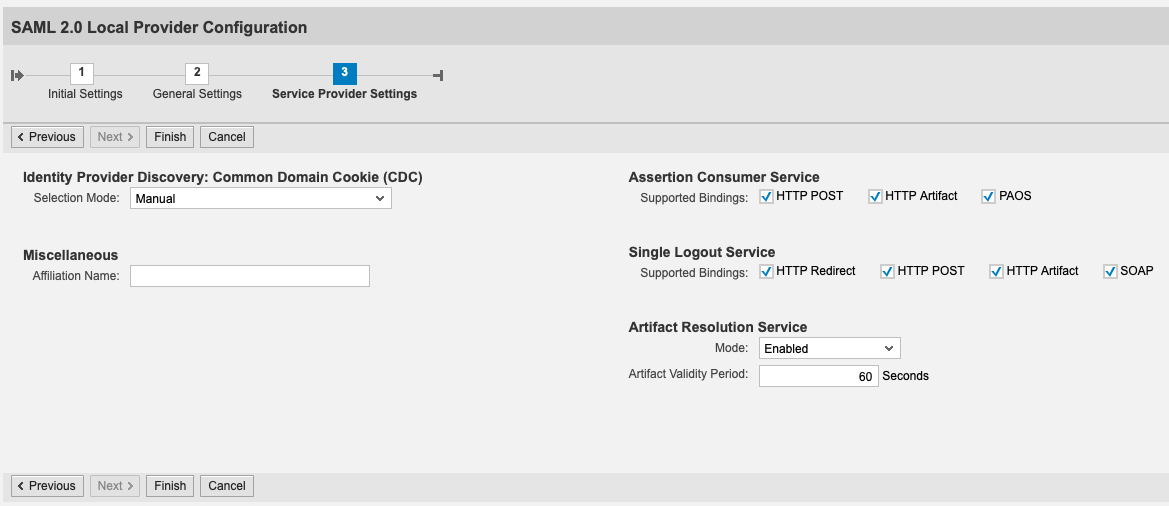

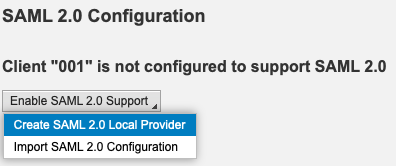

Create SAML 2.0 local provider.

Configuration options:

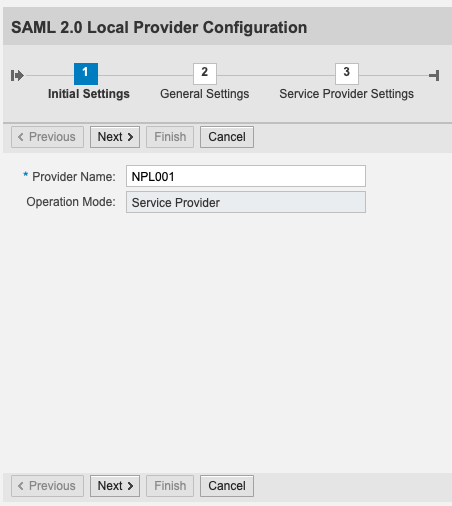

Provider Name: NPL001

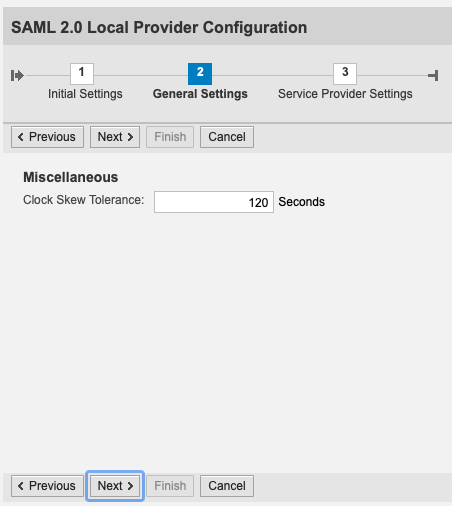

Clock skew tolerance: 120 Seconds

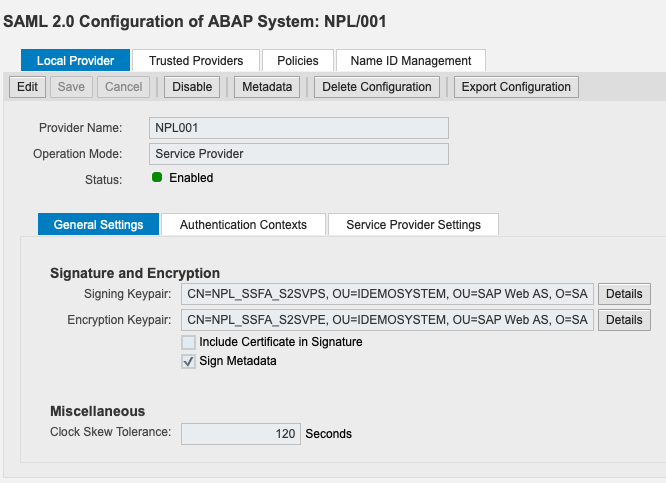

Result

A SAML 2.0 service provider is configured and enabled.

Now the NW ABAP system (NPL) is a SAML 2.0 service provider (SP). Its metadata can be downloaded and used to create trust with a SAML 2.0 Identity Provider (IdP).
