SAP Gateway – Create Trust between IdP and SP

Published by Tobias Hofmann on

1 min read

This is the final step of the task to establish a trust between SAP Gateway and Keycloak. The Keycloak SAML 2.0 IdP Metadata file downloaded in previous step is now imported into SAP Gateway as a IdP. This creates the trust on the SAP Gateway.

Import SAML 2.0 IdP Metadata file

Import the previously from Keycloak downloaded SAML 2.0 IdP Metadata file to NW ABAP.

Tx: SAML2

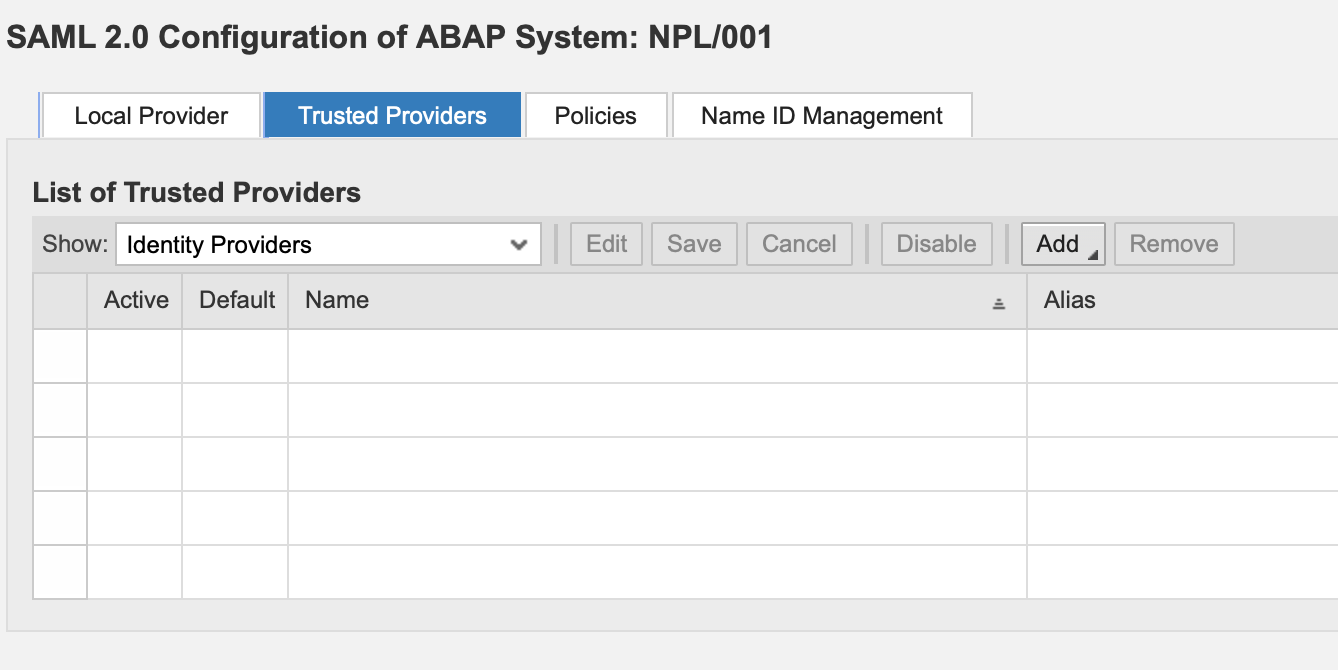

Switch to tab Trusted Providers

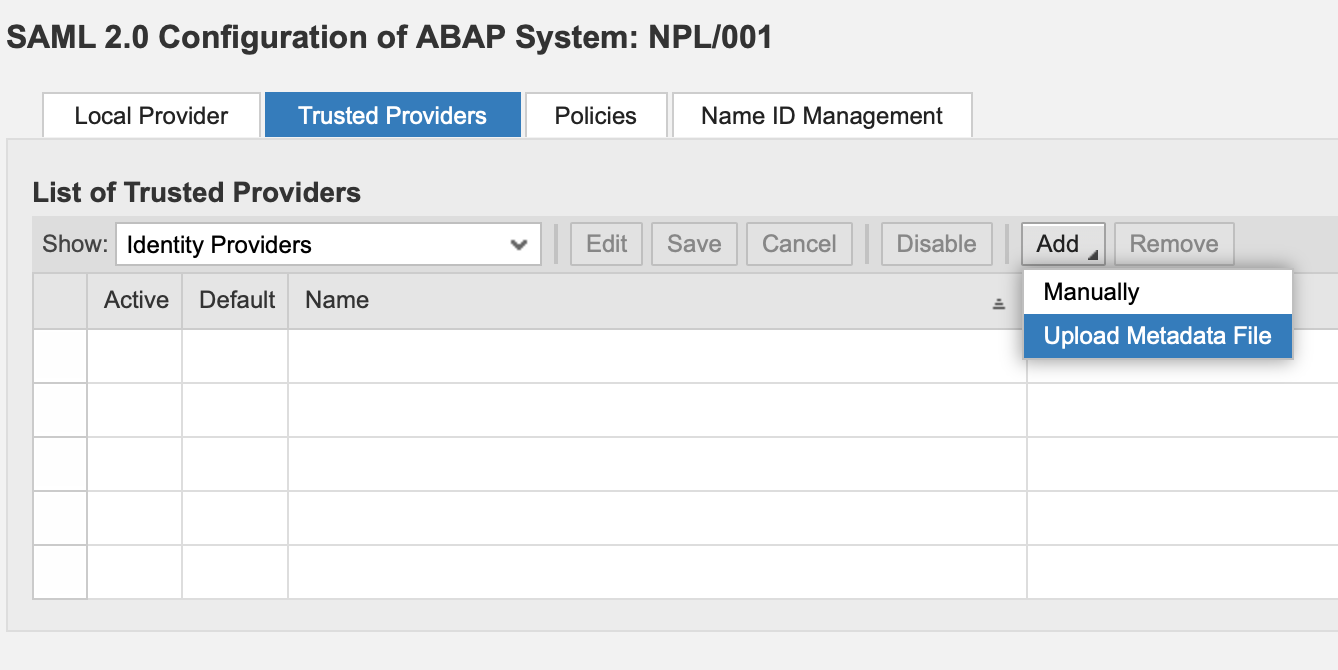

Click on Add and select: Upload Metadata file.

This starts the wizard for adding an IdP.

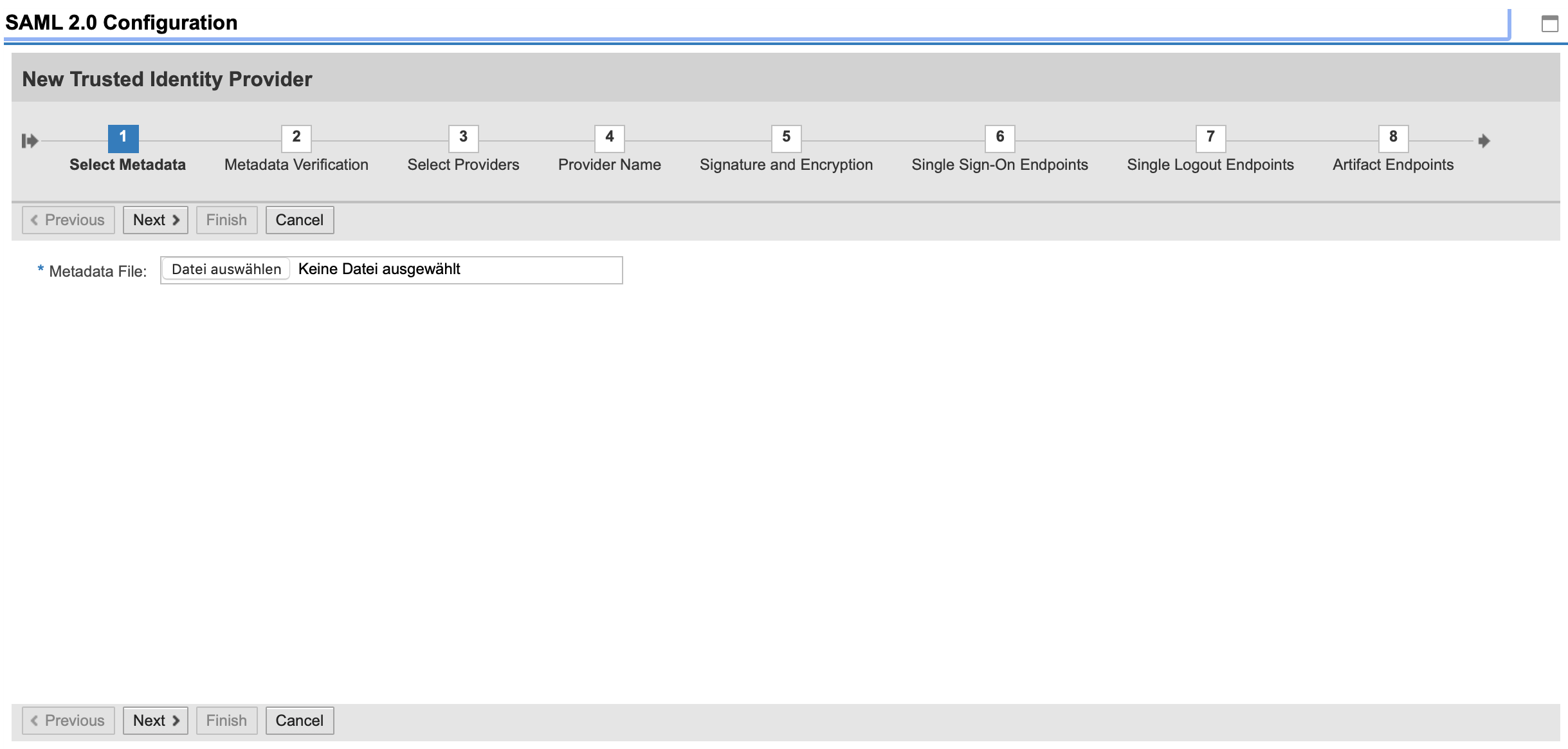

Select file: keycloak_idp_saml_metadata.xml.

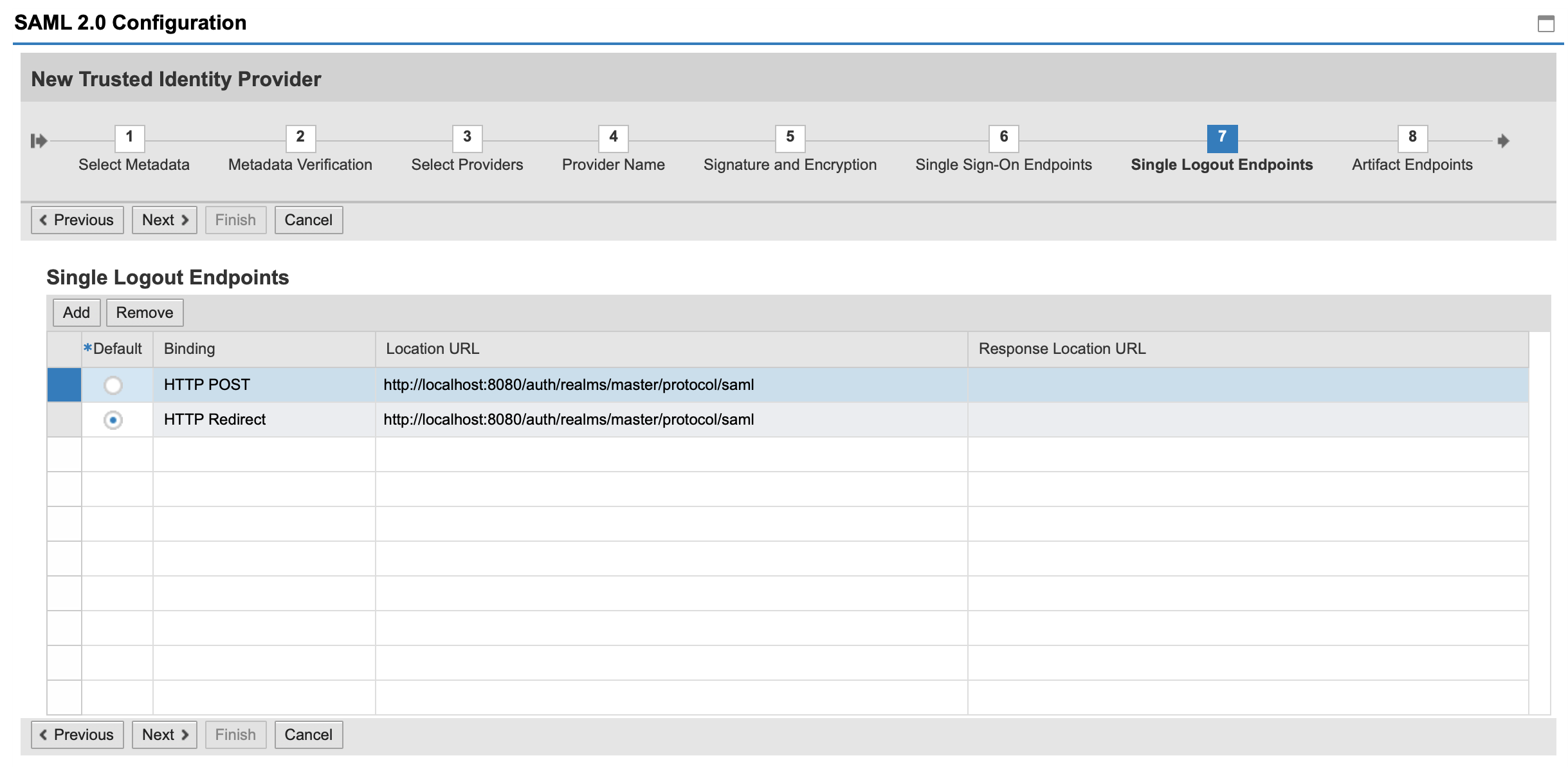

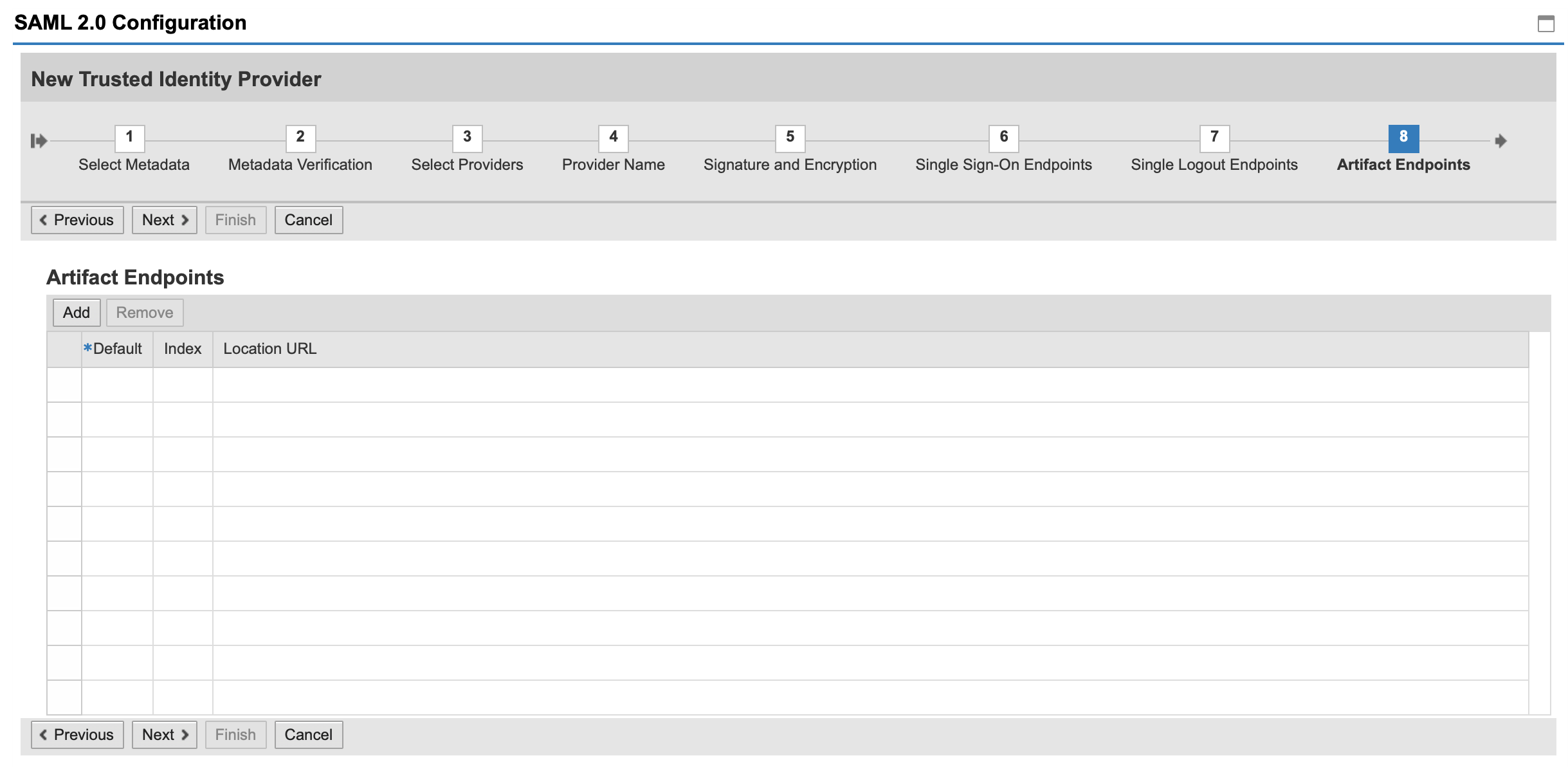

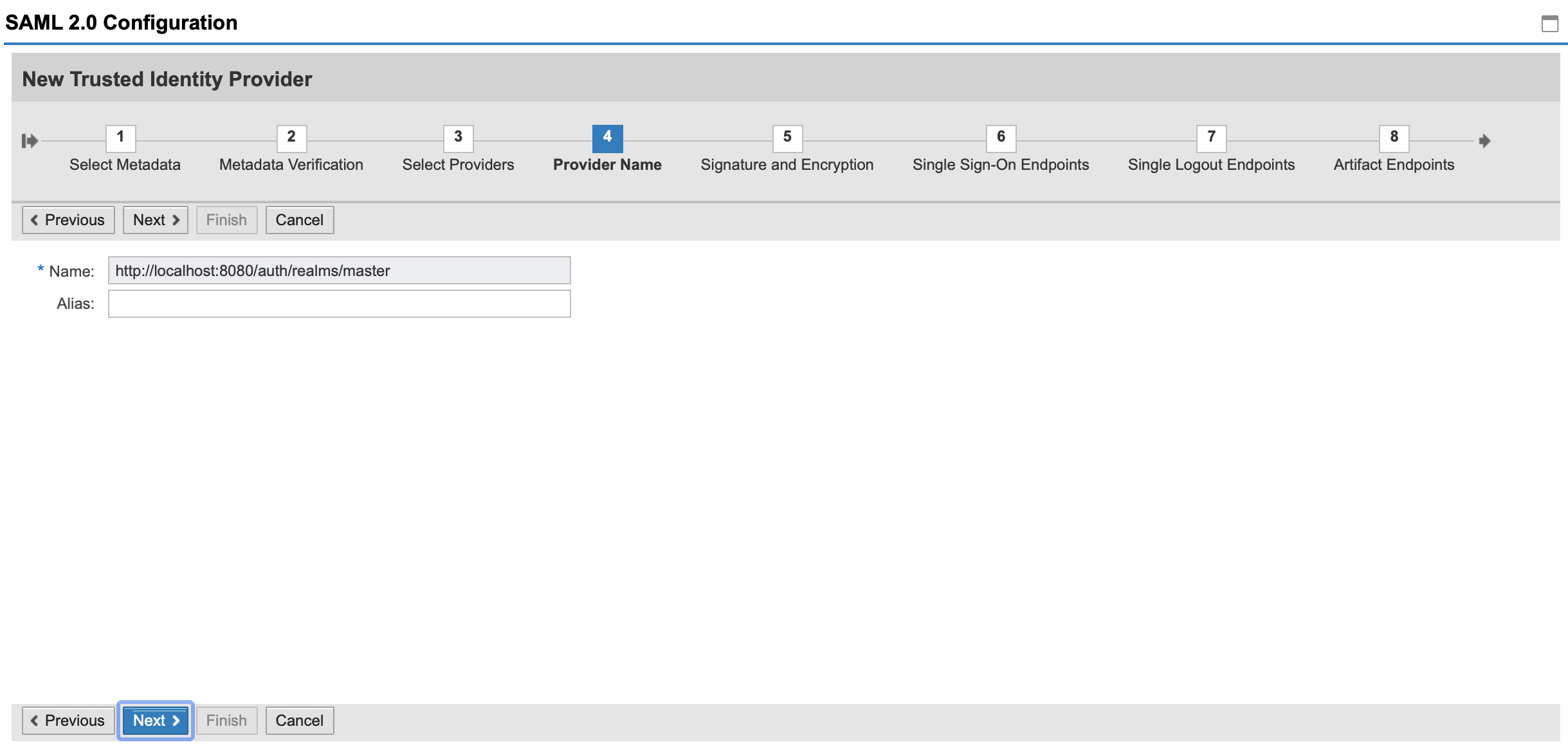

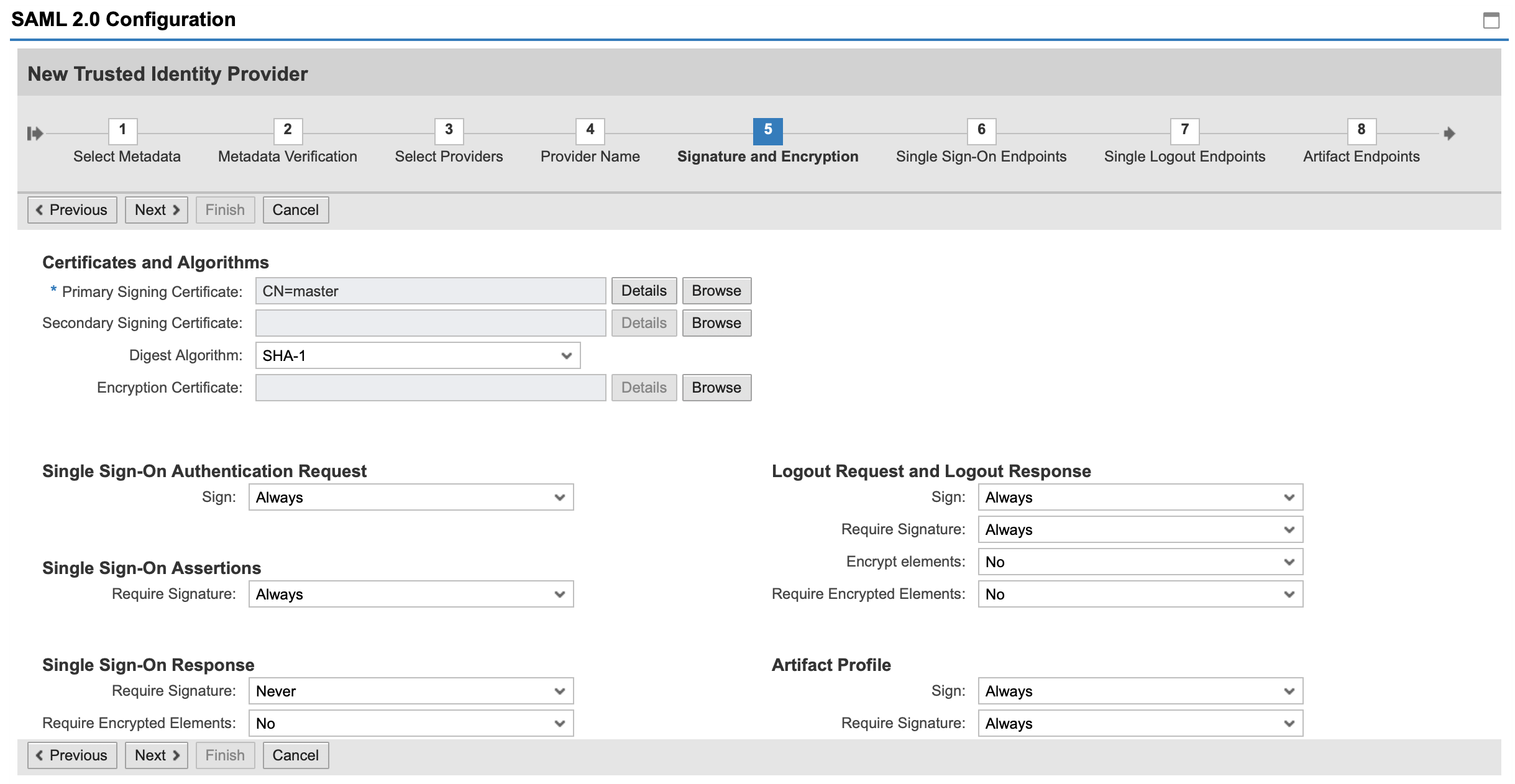

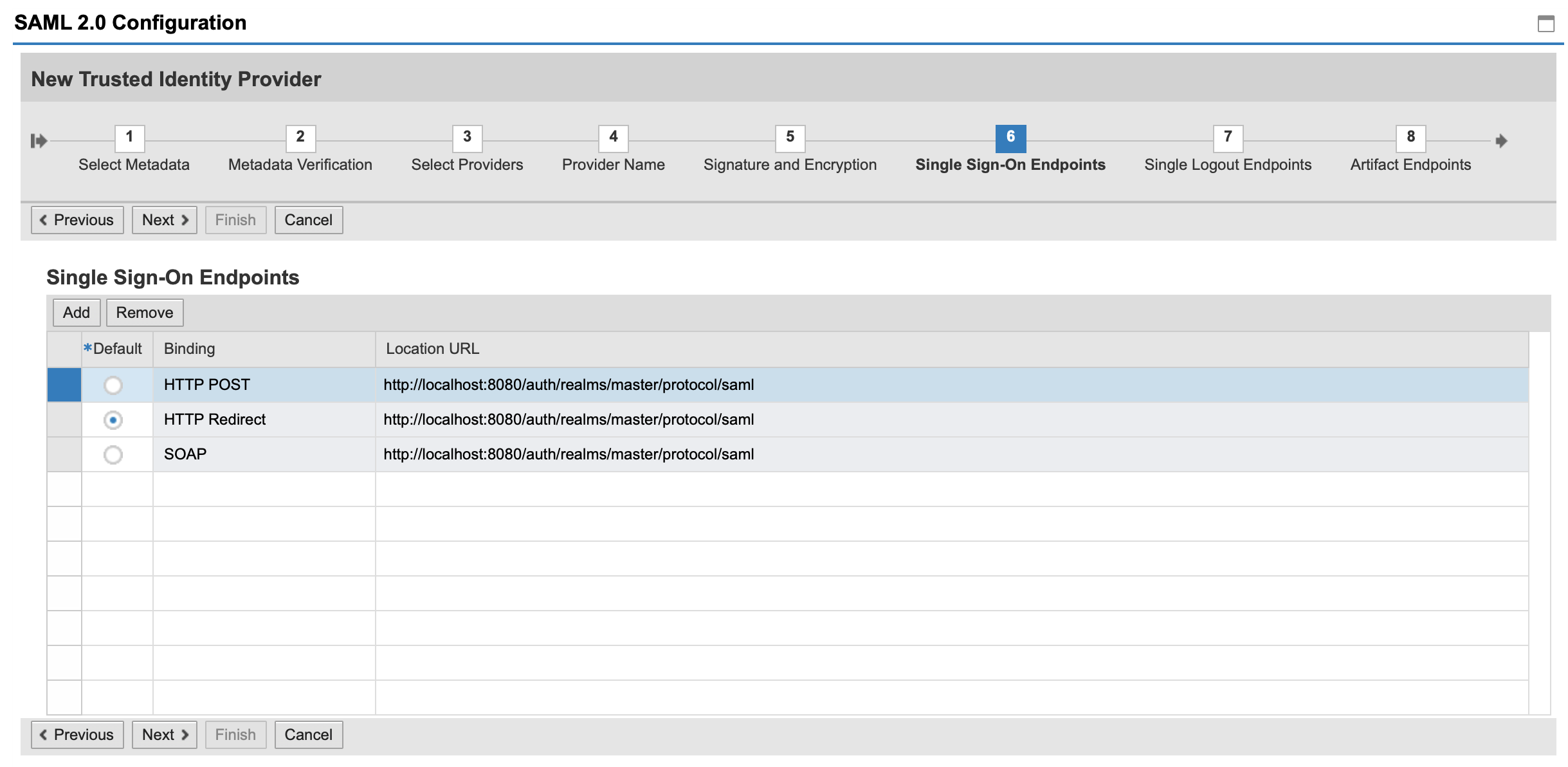

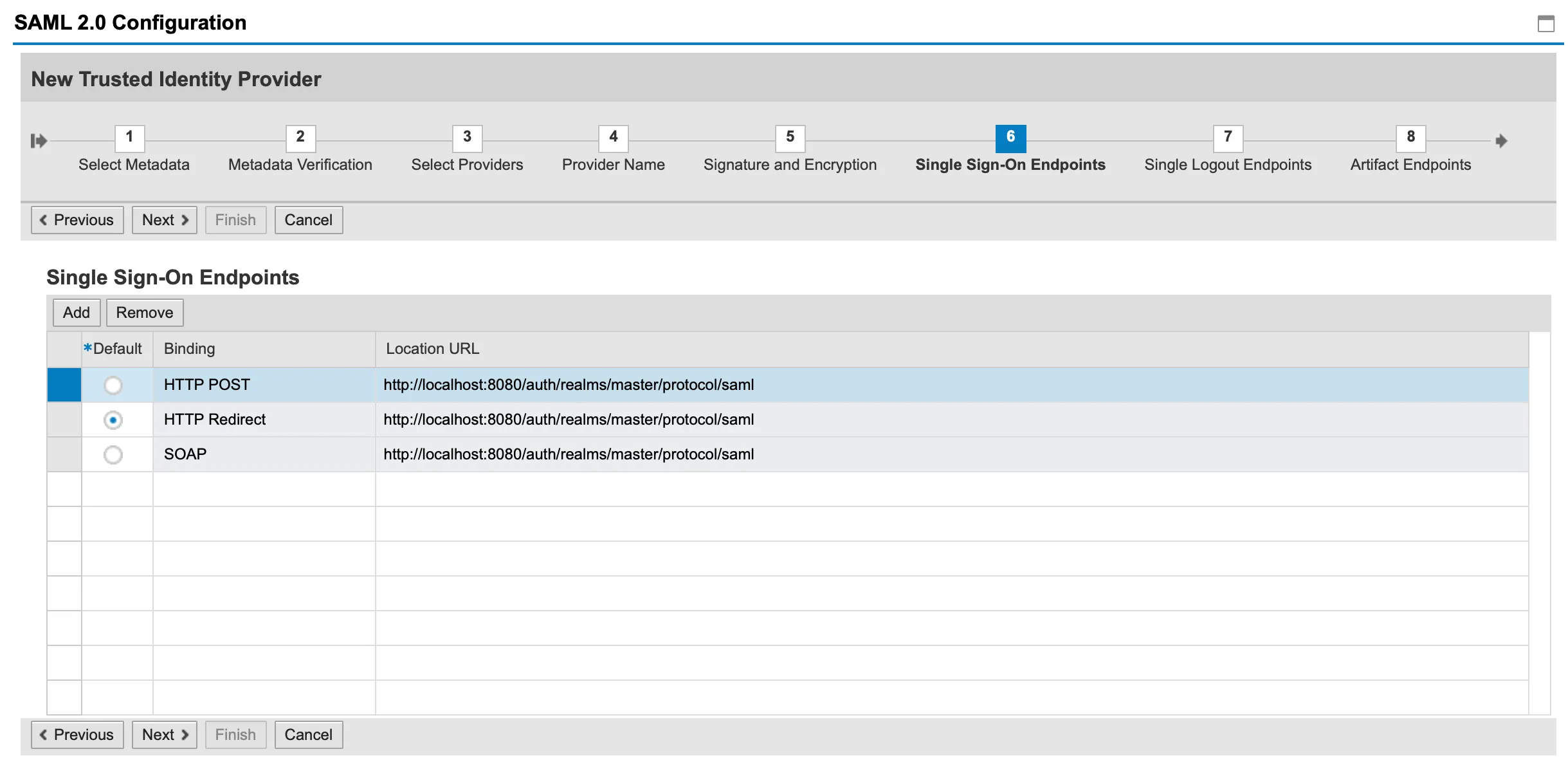

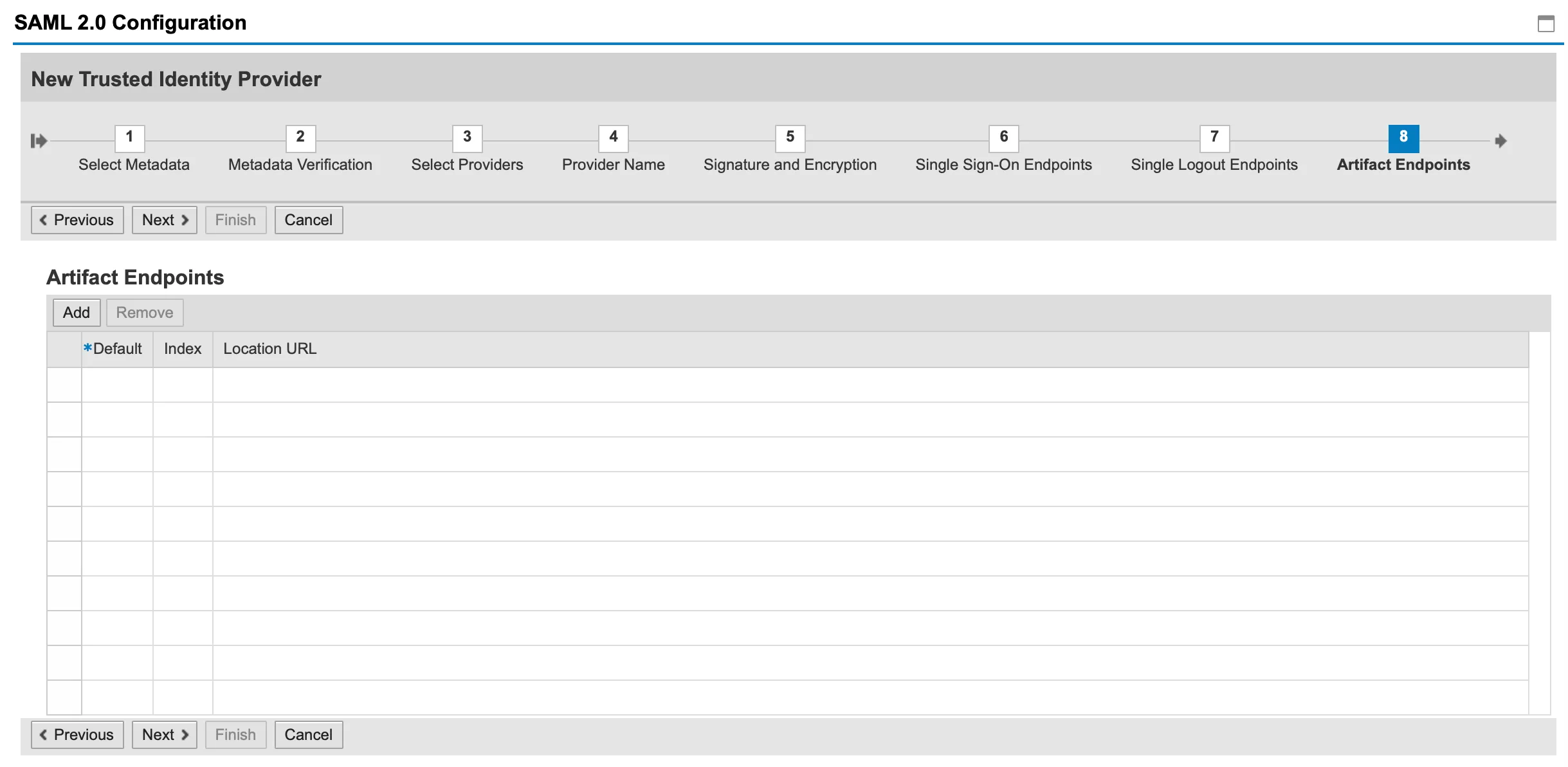

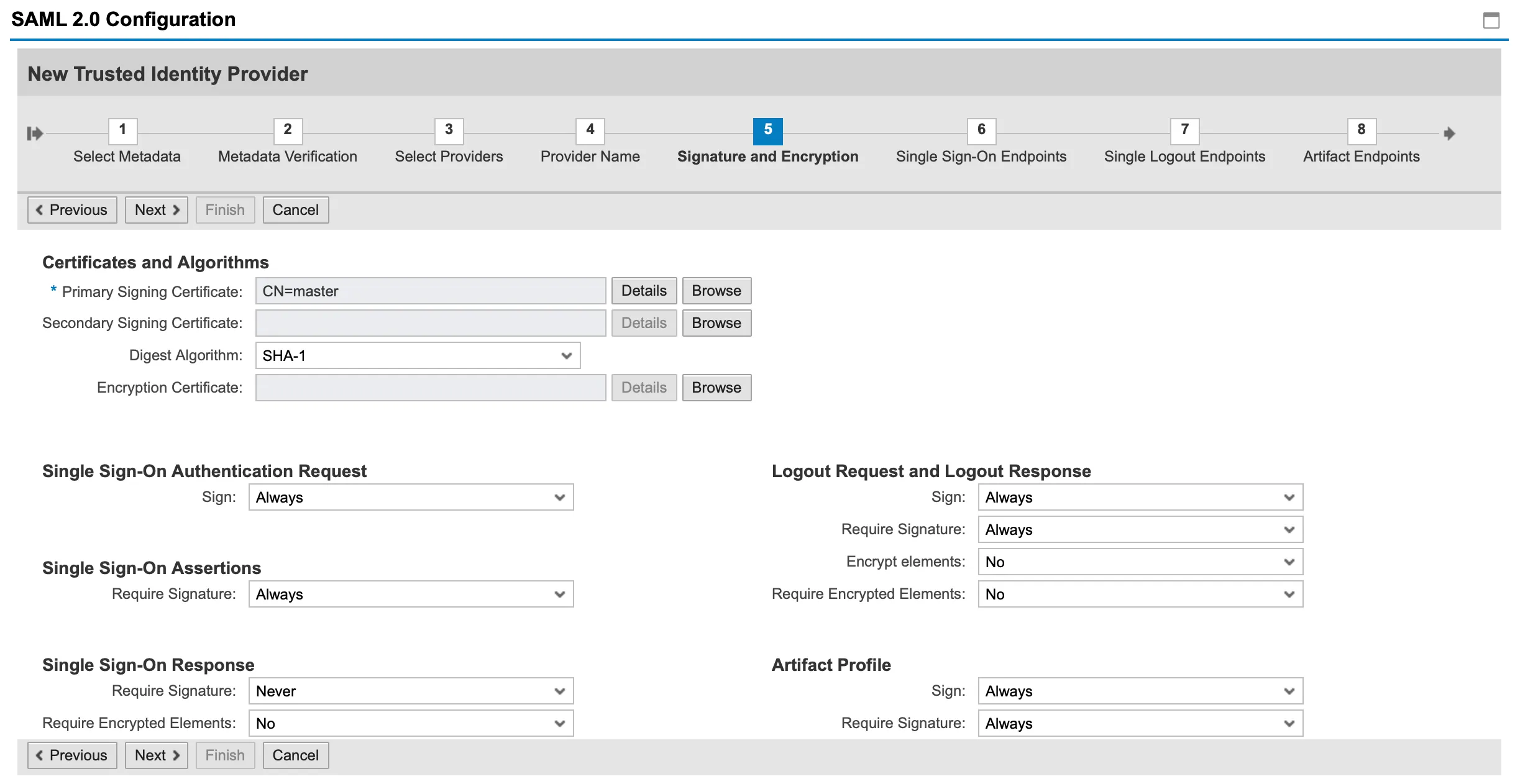

Click on next and the wizard jumps directly to step 4. From now on, it’s just going through the wizard and let it add the IdP.

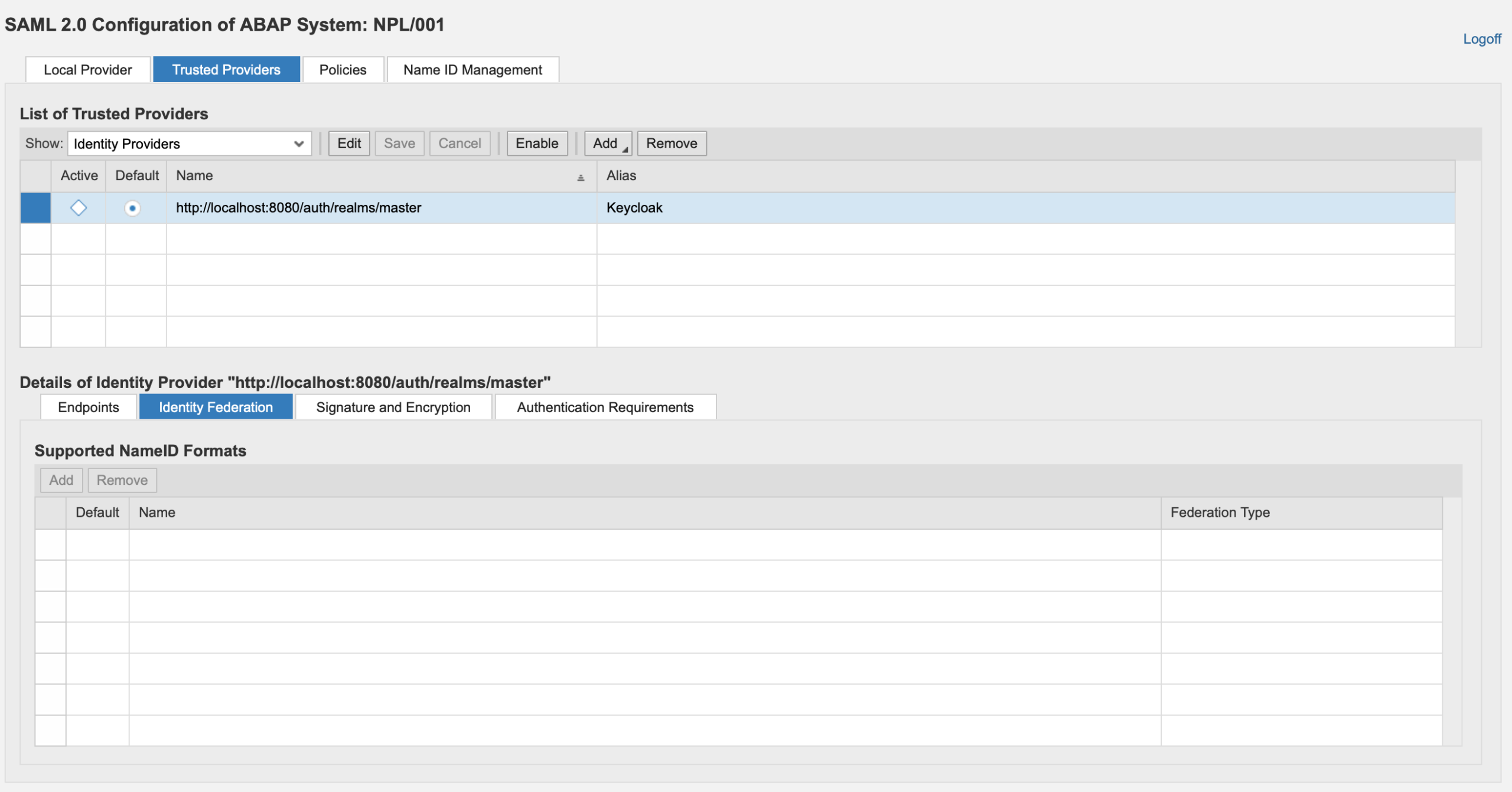

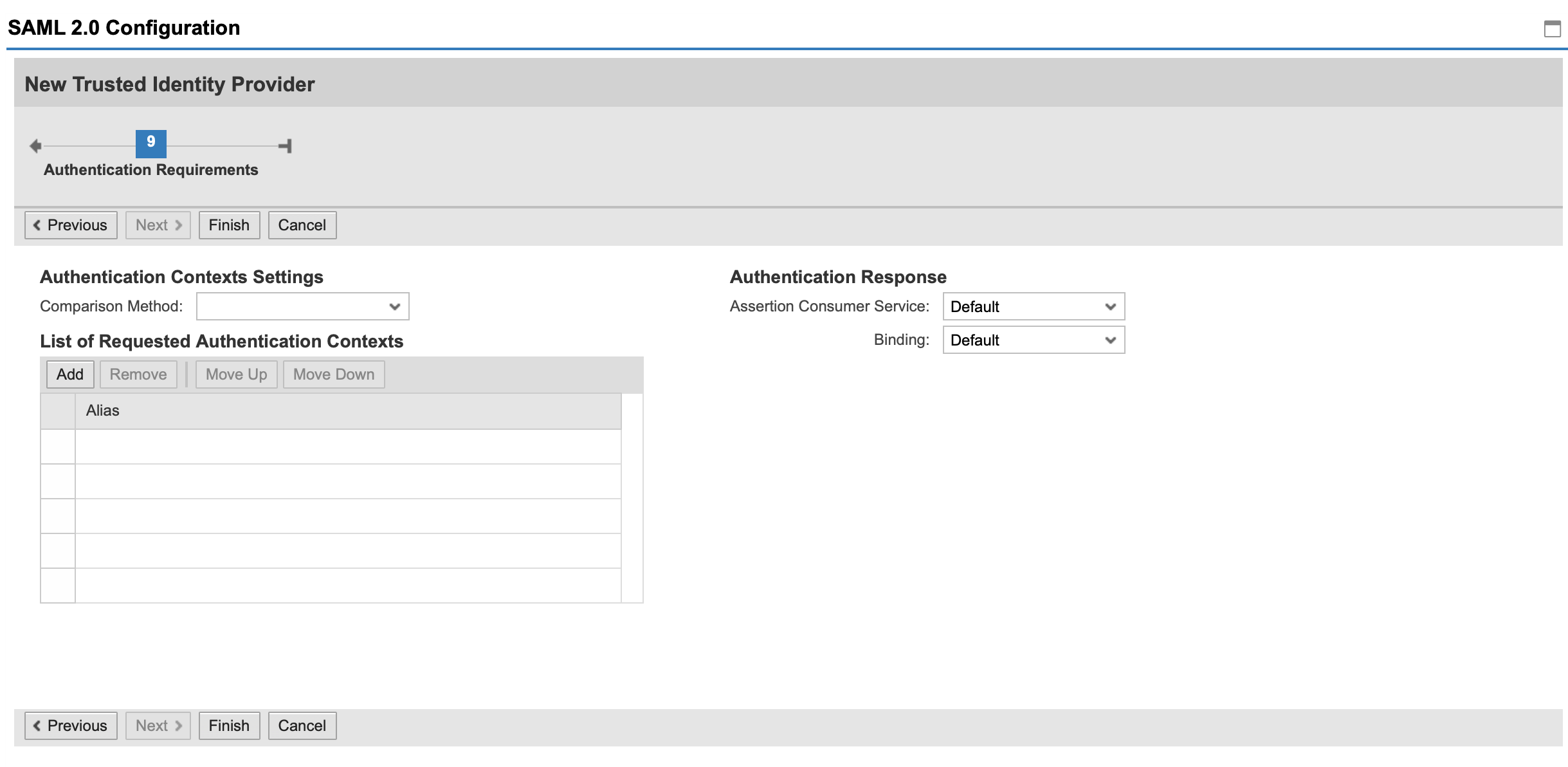

Click on Finish. The Keycloak SAML 2.0 IdP is added as a trusted IdP.

Note that the Keycloak IdP is added to the list of trusted IdPs, but is not activate and is still missing some important configuration. This will be done in the next steps.
