How to obtain an OAuth 2.0 token in SAP Cloud Platform

Published by Tobias Hofmann on

3 min read

SAP Help OAuth 2.0 Service

Sample request in my Gitlab repo

I’ll show how you can obtain an OAuth 2.0 token in SAP Cloud Platform (SCP) and manage it for authentication of apps. For the example detailed here, I am going to use an OAuth authorization grant of type client credentials. SAP Cloud Platform environment: Neo.

Create scope

Select an OAuth protected Java app and add a scope to it. If you just want to test the token flow, the app does not need to implement OAuth. You can assign an OAuth scope to any app. The app does not even be up and running.

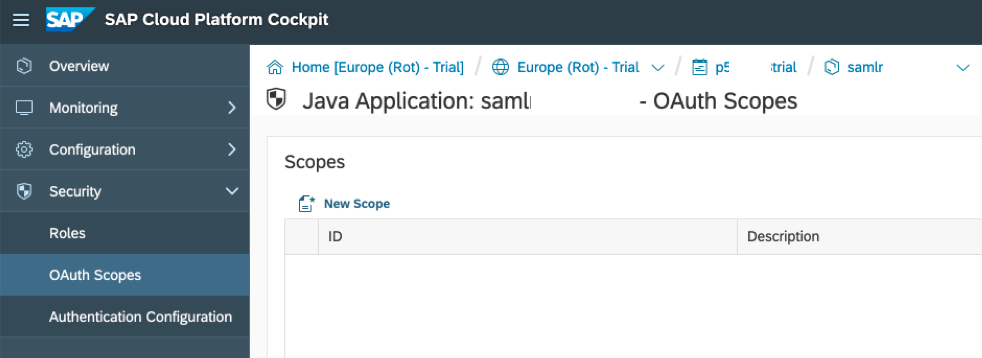

Select a Java app and go to OAuth Scopes.

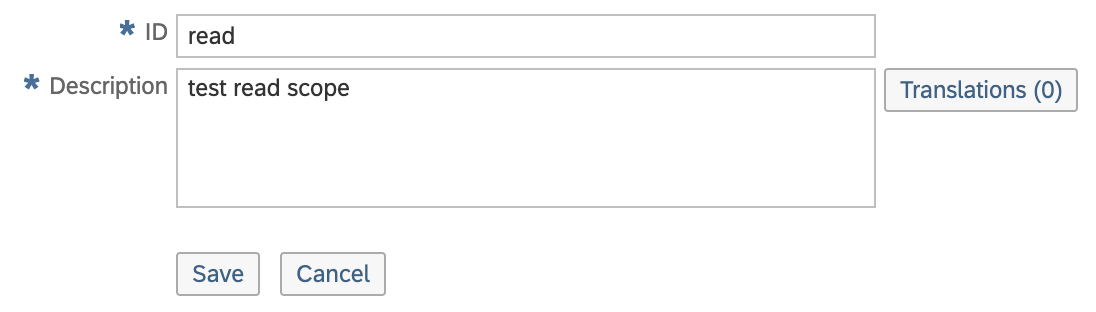

Add a new scope

ID: read
Description: test read scope

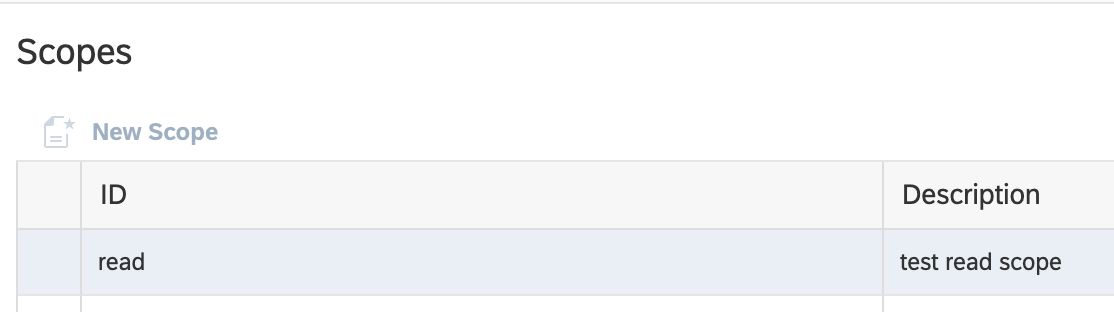

This adds a new scope to your Java app.

Create client

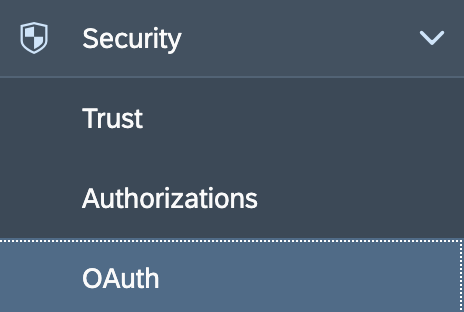

In the SCP admin dashboard, go to OAuth and tab clients

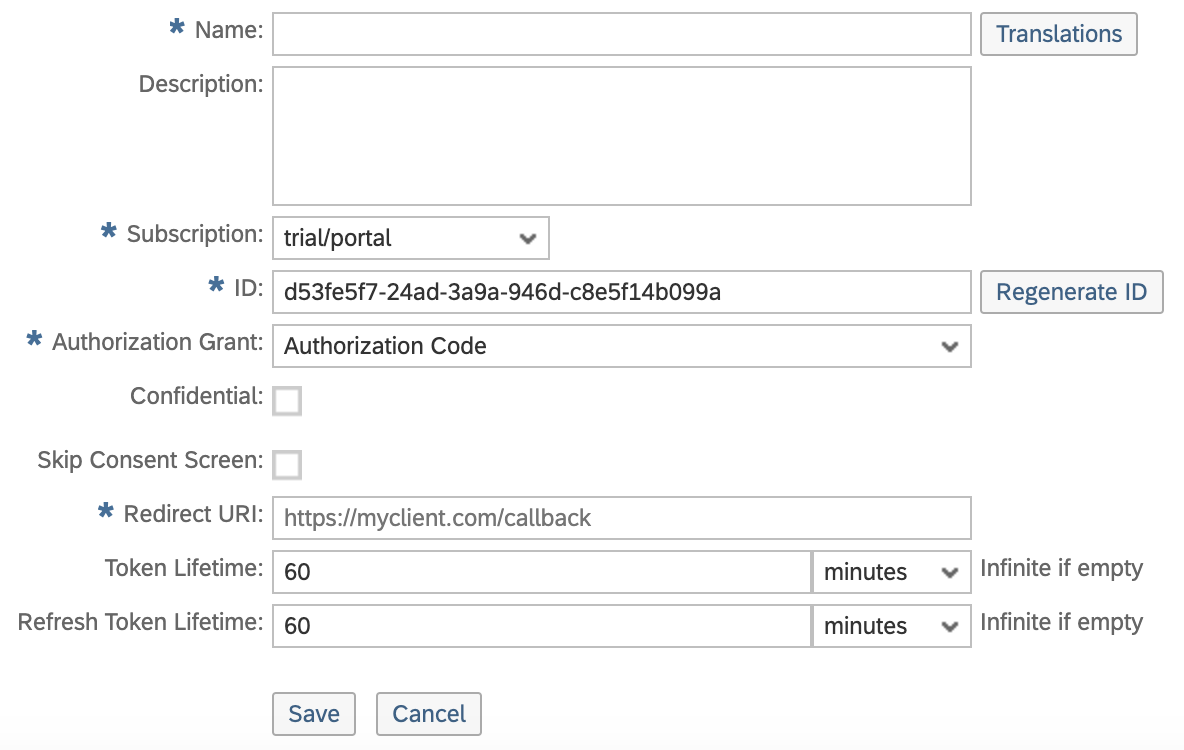

Register a new client

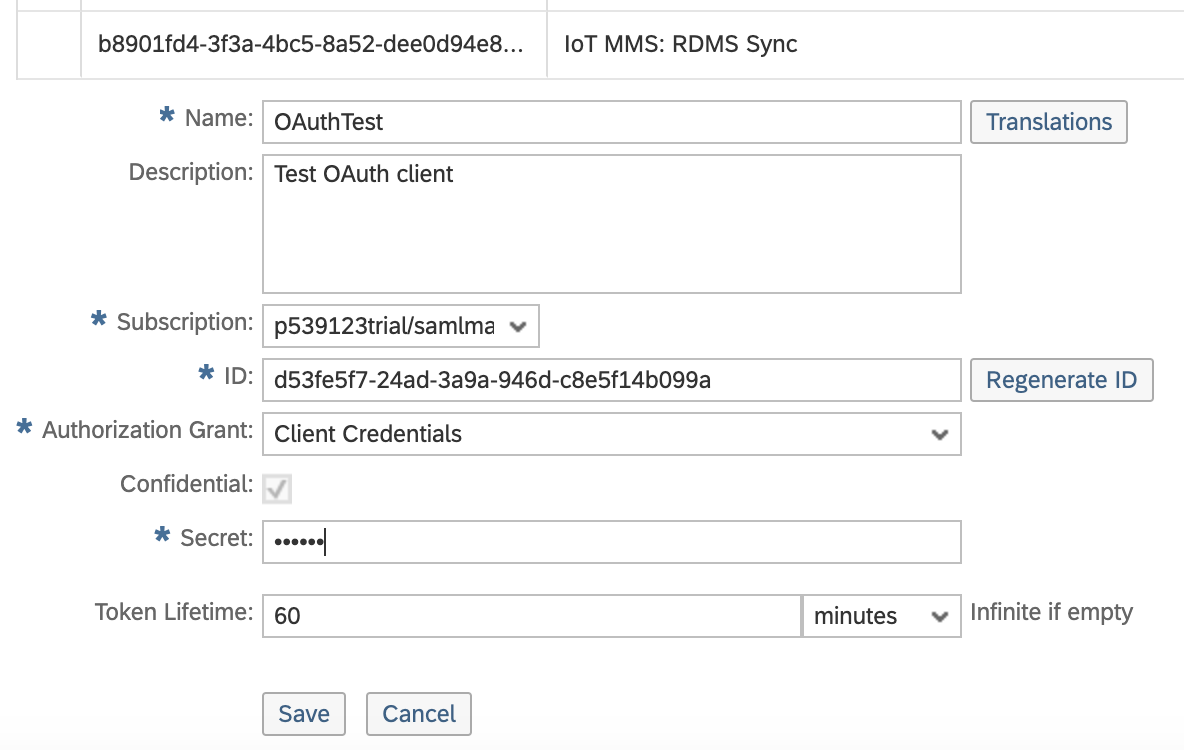

The form is activated and some values are already filled out. Some values must be changed when adding an OAuth client with client credentials.

Name: OAuthTest
Description: Test OAuth client
Subscription: select the Java app where you added the scope to
Id: use the proposed value
Authorization grant: Client Credentials
Confidential: Yes (after selecting authorization grant, the value should be set and read only)
Secret: provide a strong password
Token Lifetime: 60 minutes

Obtain OAuth token

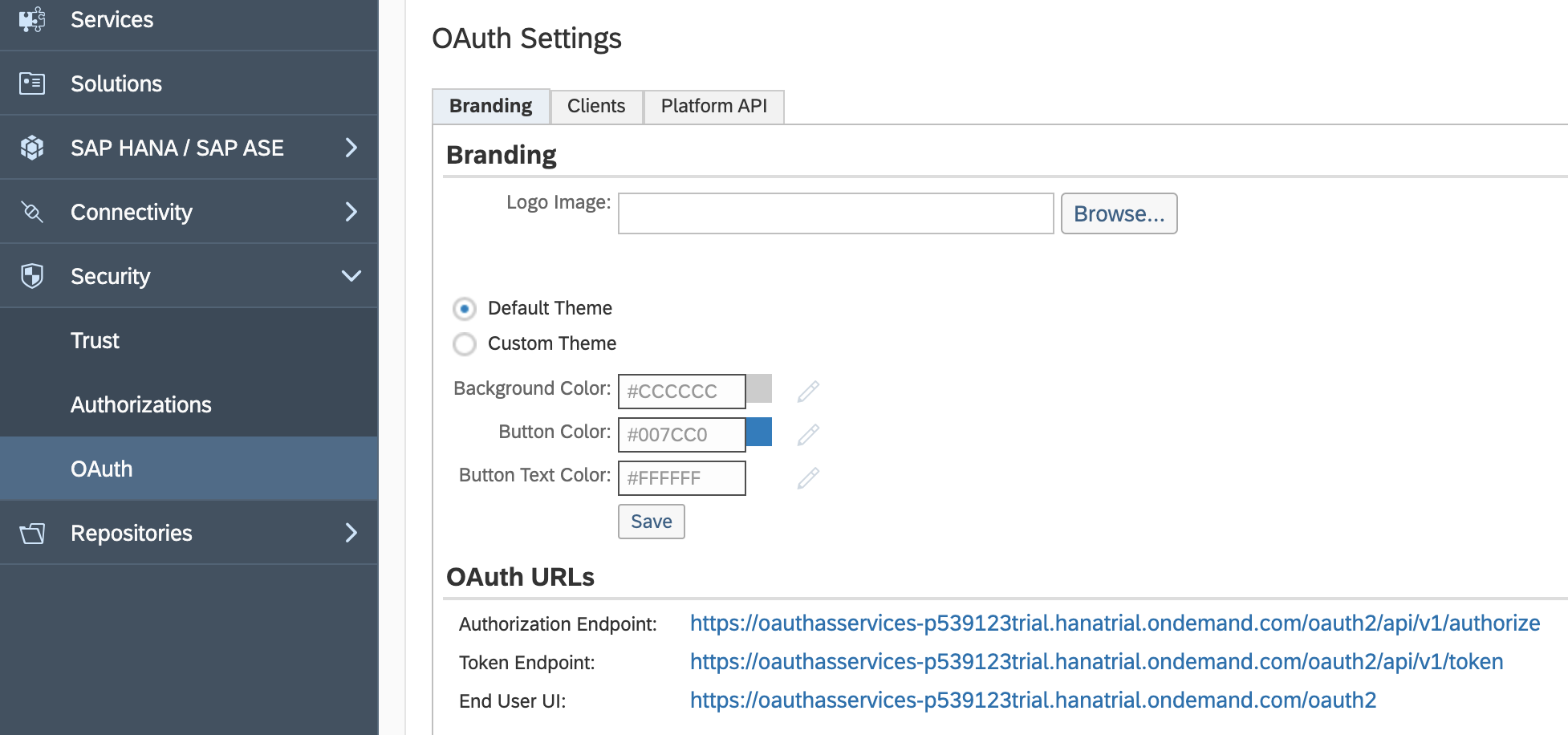

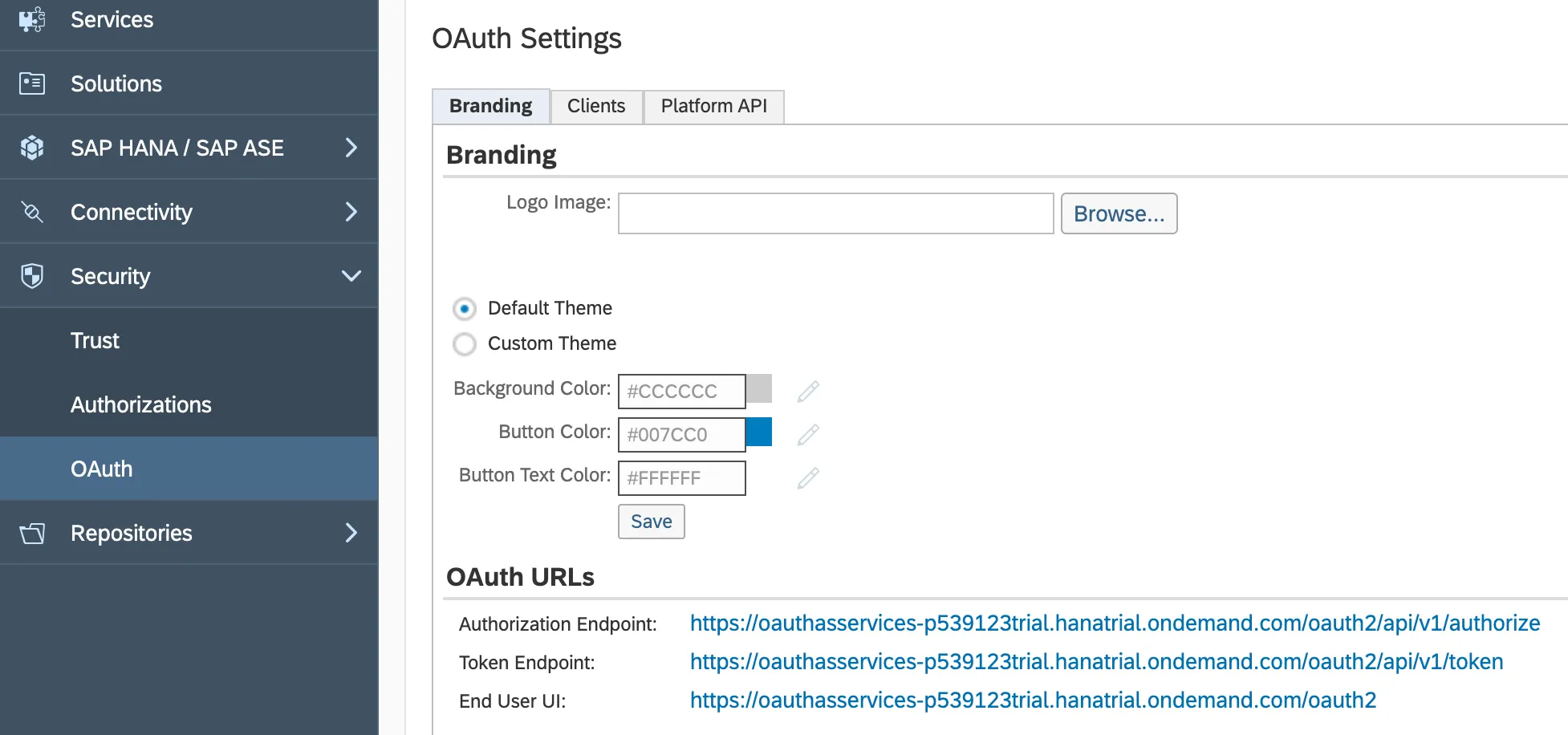

A token can be obtained be sending a request to the token endpoint URL. This URL can be found in the OAuth security section in the branding tab.

Here, the URl is https://oauthasservices-p539123trial.hanatrial.ondemand.com/oauth2/api/v1/token

To get the token, a GET request containing the following information is send. The authorization is Basic, with the client_id and password

Client id: 5dc904c5-9130-36a9-b7e7-0f25a2e3c102
Password: abc123

The String 5dc904c5-9130-36a9-b7e7-0f25a2e3c102:abc123 must be Base64 encoded.

Header

Authorization:Basic NWRjOTA0YzUtOTEzMC0zNmE5LWI3ZTctMGYyNWEyZTNjMTAyOmFiYzEyMw==

Request Body

grant_type:"client_credentials"

scope:"read"

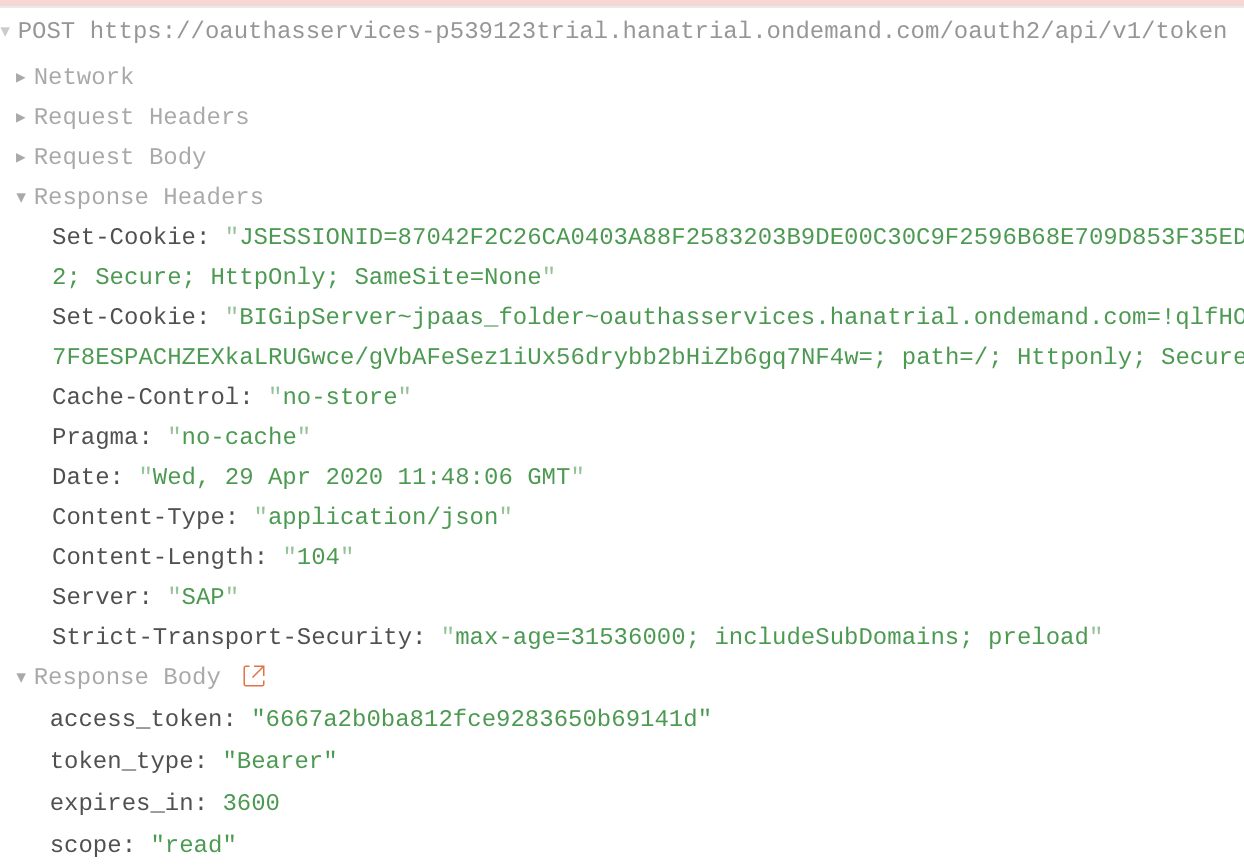

Response

As a response, the SCP OAuth token service will send back an access token.

access_token: "6667a2b0ba812fce9283650b69141d"
token_type: "Bearer"
expires_in: 3600
scope: "read"

Example Postman

Sample request in my Gitlab repo

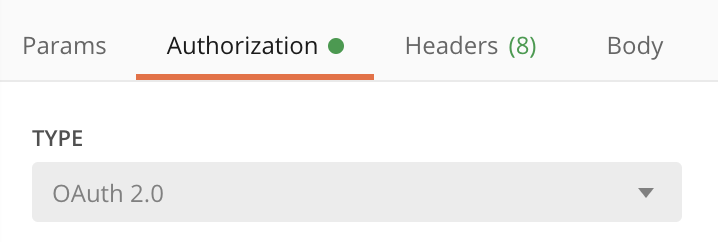

To get an OAuth token from SCP using Postman, create a new request and open the Authorization tab. Select as type OAuth 2.0.

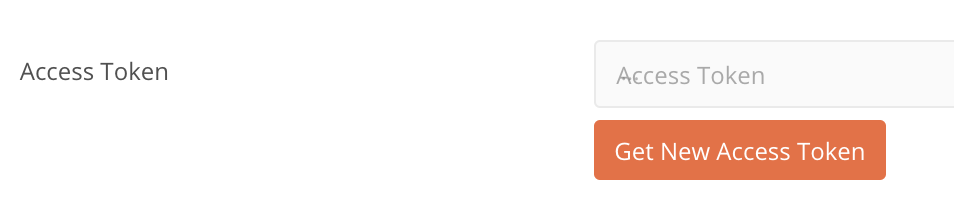

Click on Get new access token.

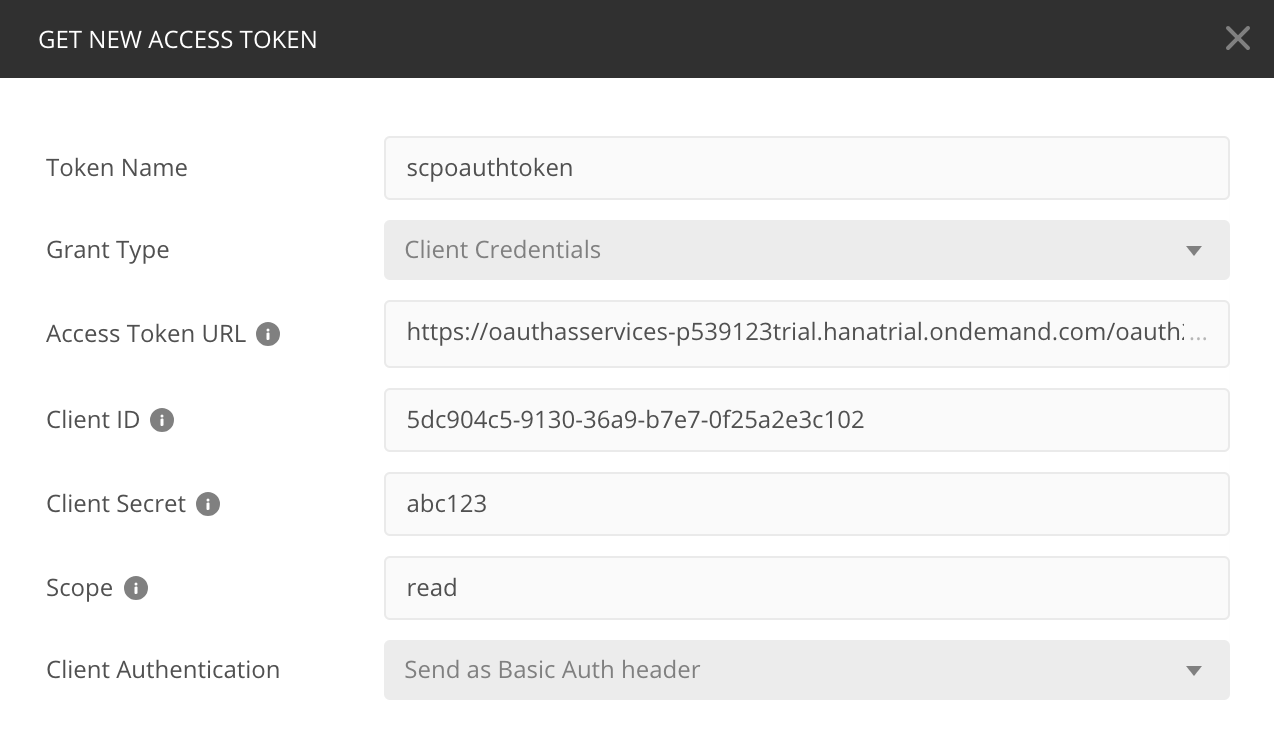

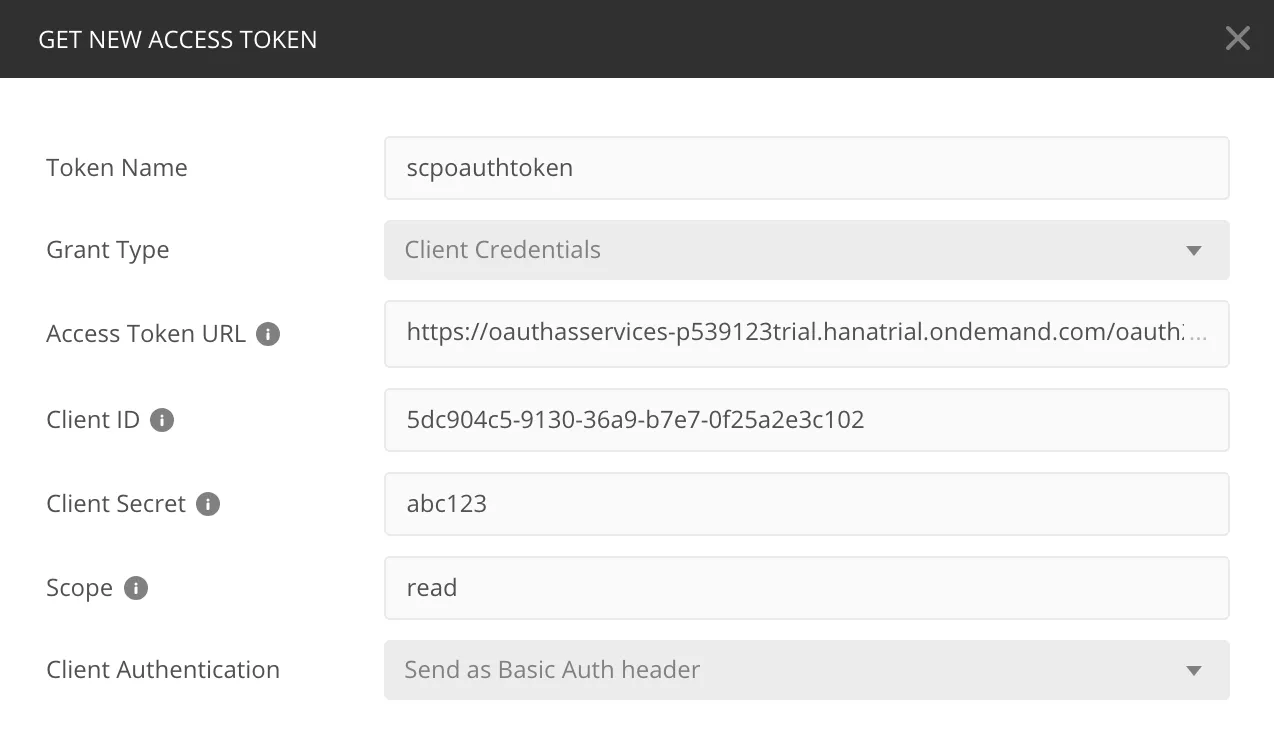

This will open a form that helps you to insert the information needed to obtain a token.

Token Name: scpoauthtoken
Grant Type: Client Credentials
Access Token URL: See SCP
Client ID: See SCP OAuth client configuration
Client Secret: See SCP OAuth client configuration
Scope: See SCP Java app

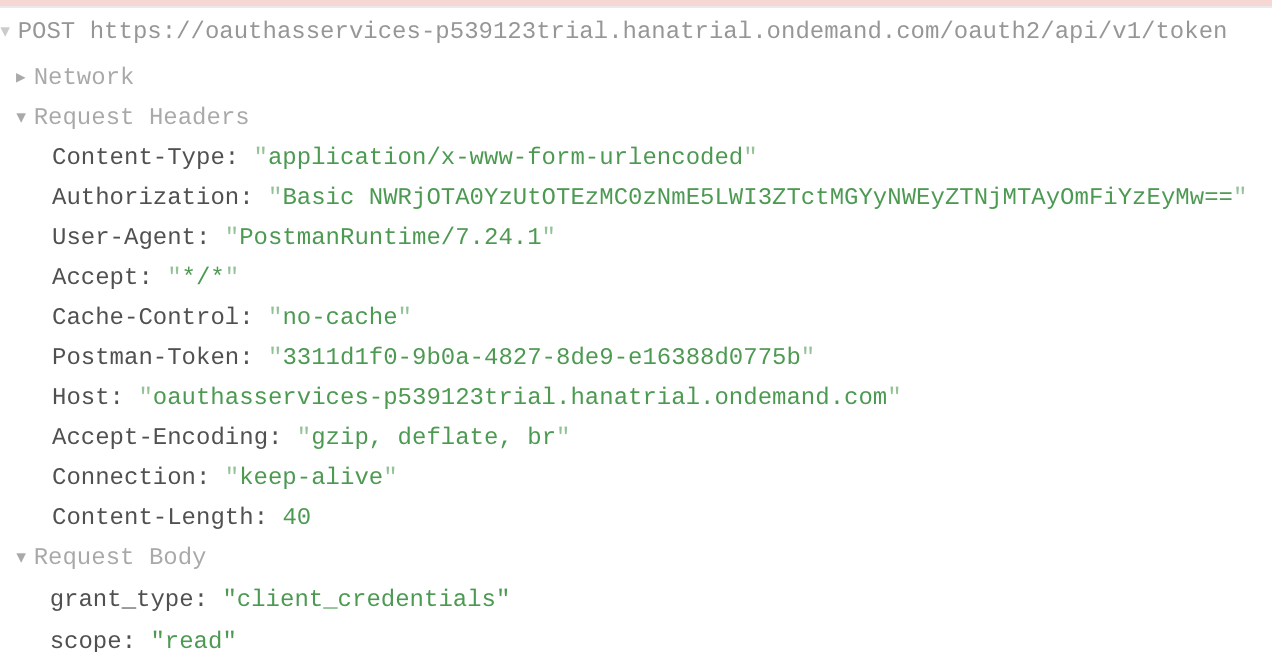

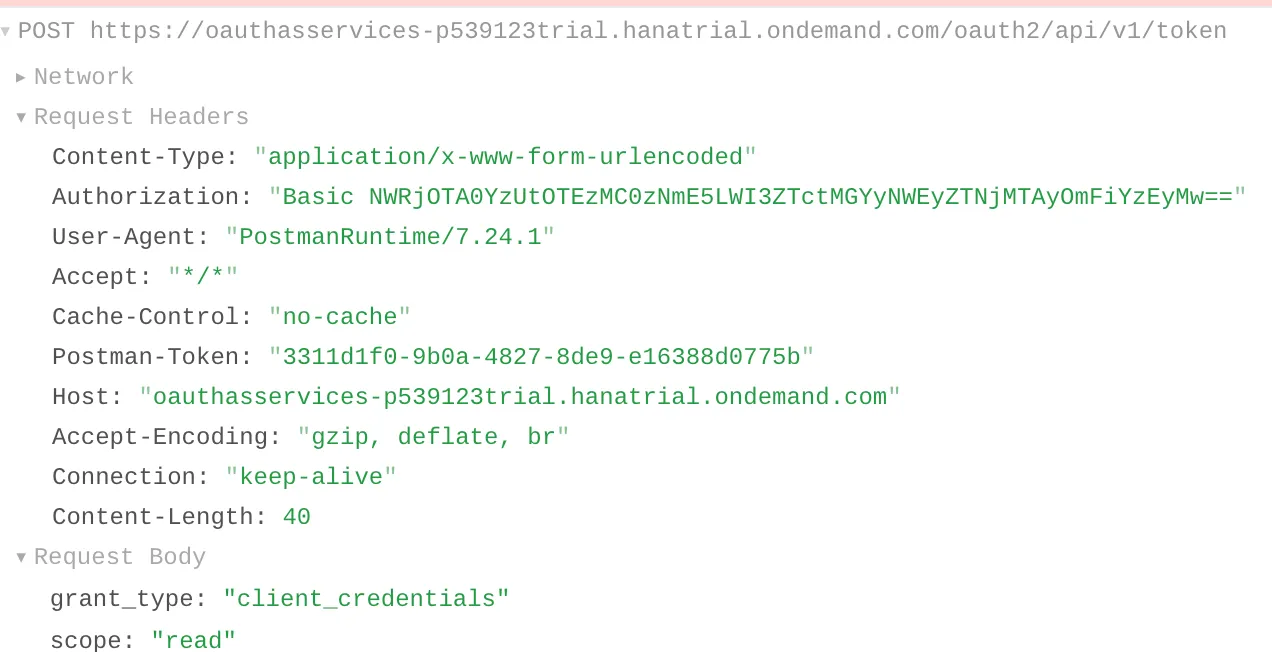

Request

Response

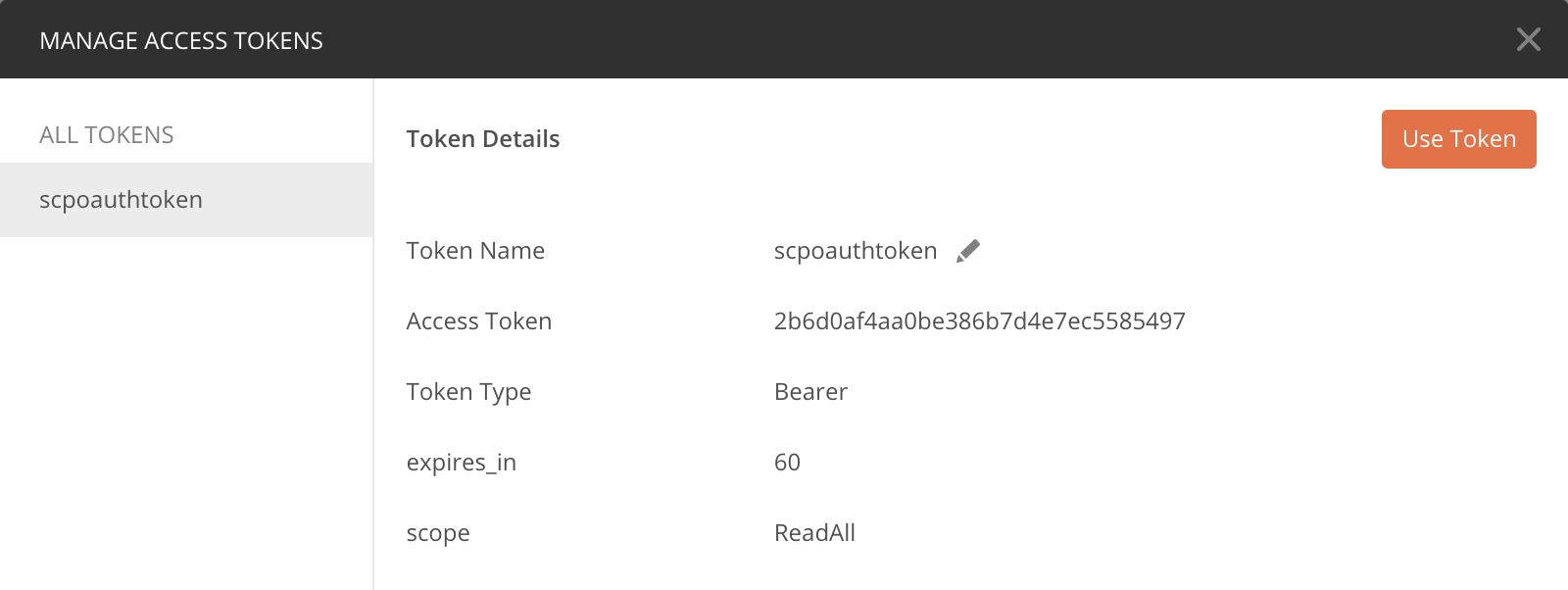

Token is issued and can be used by Postman

As you can see, the token is not an OpenID Connect token. Therefore, this token can only be used by SCP apps. You cannot use this token to forward it to an OIDC enabled app.


Troubleshooting

Error while trying to receive token.

Error: Cound not complete OAuth 2.0 token request: "Scopes exceed the scope registered for the client."

Solution A

Check that the scope assigned to the app in SCP and send by the client are the same.

Client Scope:

App Scope:

Solution B

In case you just requested a token: wait for a few minutes. Sometimes a new token is issued after waiting for a few minutes. This should not happen, but it is a workaround.
