X509 based logon – 4.1 – Enable users for logon on NW ABAP – Mapping table

Published by Tobias Hofmann on

2 min read

This approach is considered legacy, deprecated and is not recommended any longer by SAP. I just include this here as a reference for those that cannot update.

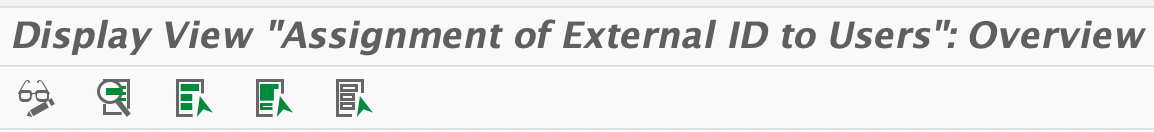

Tx: SM30

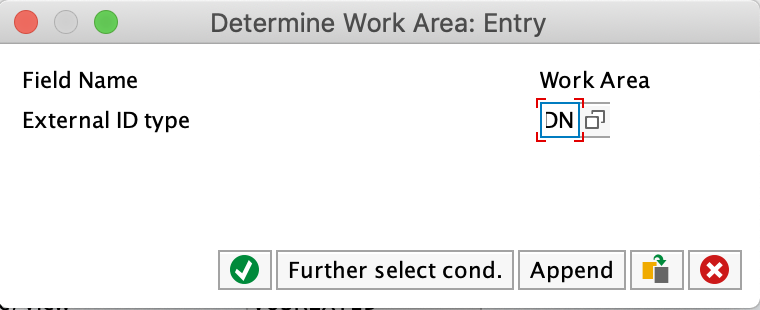

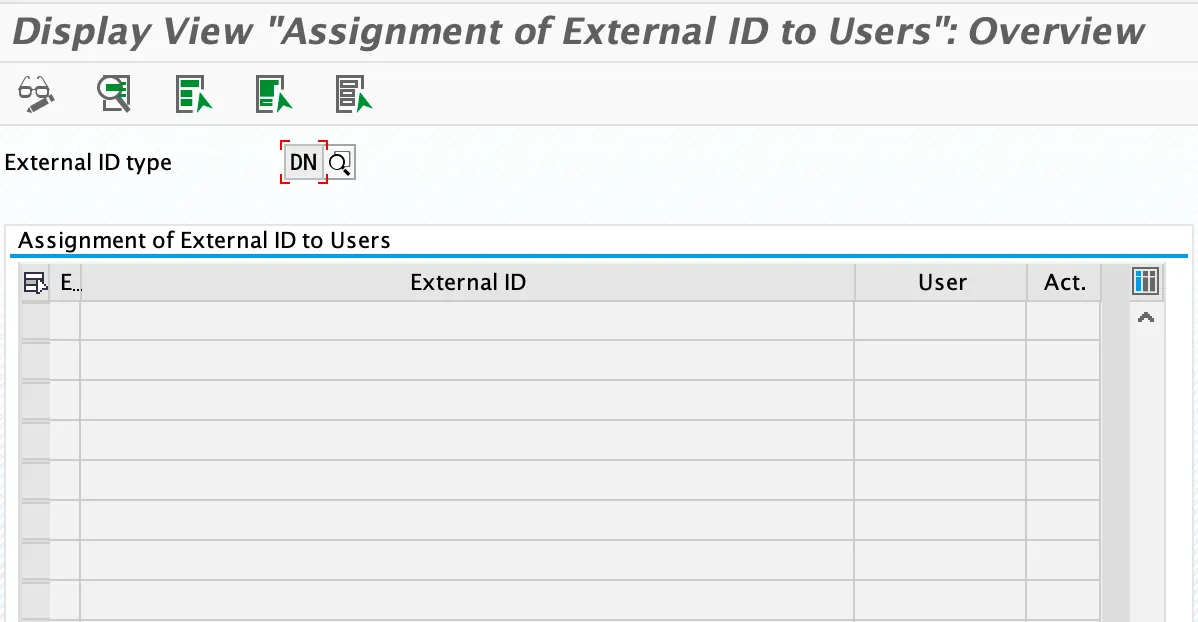

External ID Type DN

Add a new entry. Switch to edit mode.

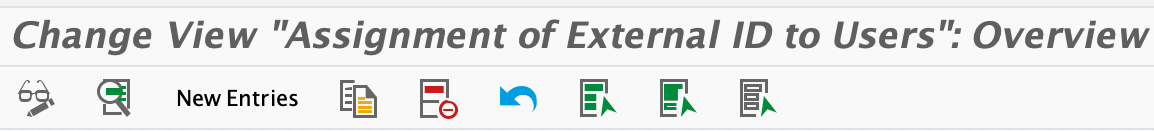

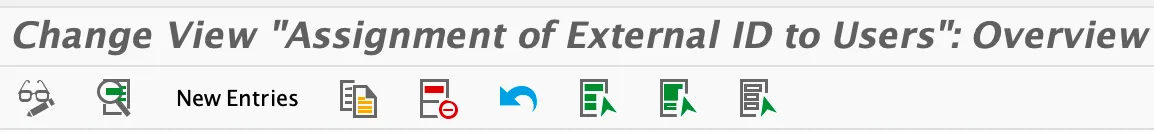

Click on new entries

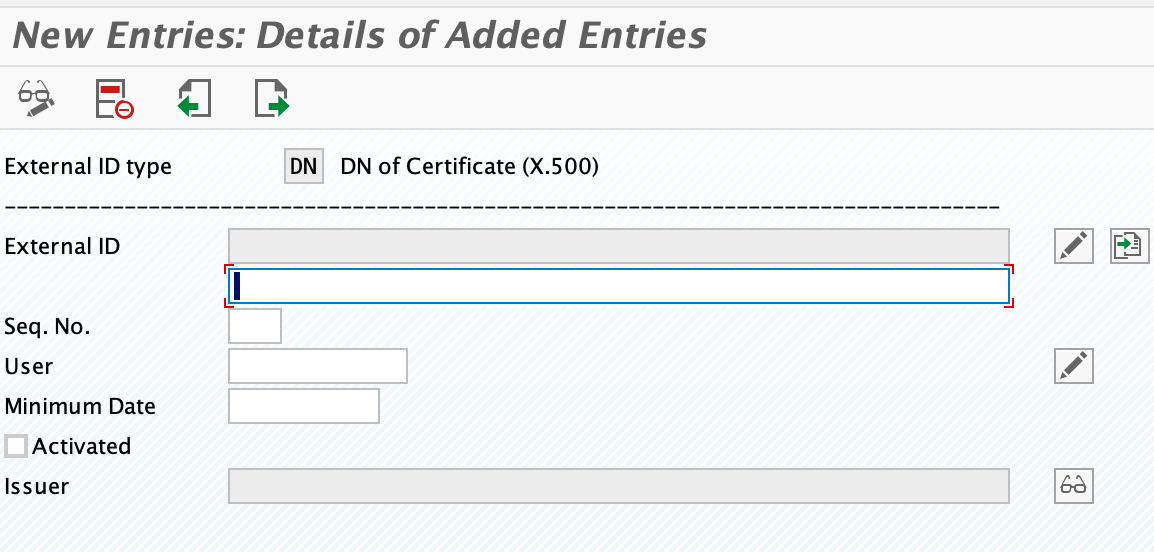

A new entry for external Id is added by inserting the CN information the certificate has in its Subject line.

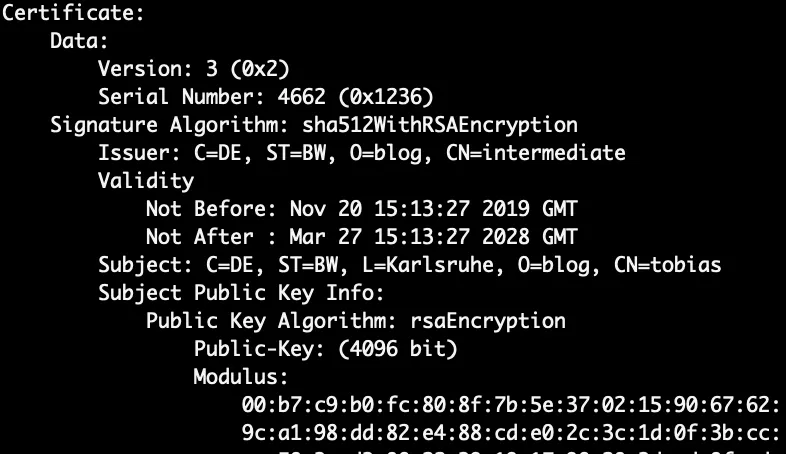

The subject line of a certificate can be read using OpenSSL. The Subject in the given example is:

Subject: C=DE, ST=BW, L=Karlsruhe, O=blog, CN=tobias

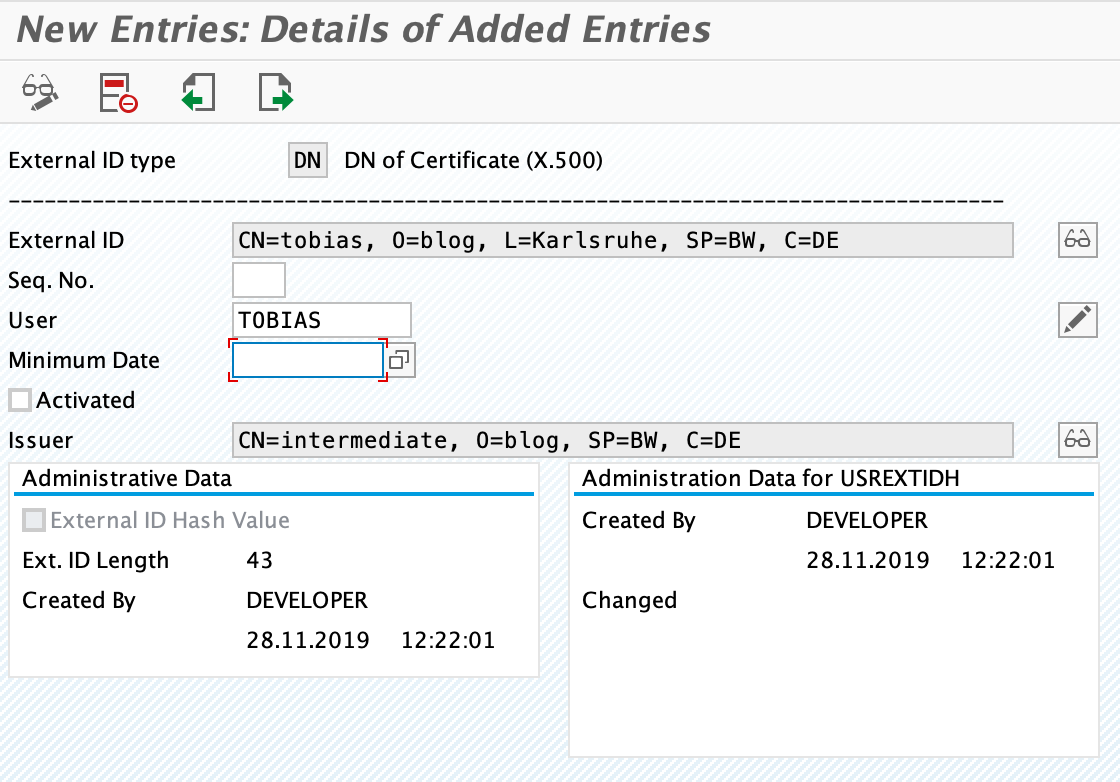

External ID: CN=tobias
Activated: check
