In the SAML 2.0 SSO logon with automatic user creation scenario, the user is created in the SAP system by a BADI. The user information send by the SAML 2.0 IdP is contained in the SAML response. In my previous blog I have shown how the user profile is configured using mappers in Keycloak. With these mappers the mandatory information expected by the ABAP class is provided:

  • First name,
  • Last name
  • Email address

In a SAP NetWeaver ABAP system, each user created has a unique user id. This user id is not part of the SAML response. You may now wonder how the SAP system is creating the user and assuring that the user id is unique to the target system. This is achieved by using a number range for the actual user id for the user going to be created via the SAML 2.0 SSO process.

The ABAP class called when creating a new user is calling a function named NUMBER_GET_NEXT. For this method to work, the number range must be configured.

Note

Another user should not have a conflicting user id in the SAP system.

Source code

CALL FUNCTION 'NUMBER_GET_NEXT'
EXPORTING
  nr_range_nr = '01'
  object = lc_number_range_object
IMPORTING
  number = lv_number
EXCEPTIONS
  OTHERS = 1.

lc_number_range_object is defined as lc_number_range_object TYPE inri-object VALUE ‘SAML2ID’. In the example code, the value of that variable is SAML2ID.

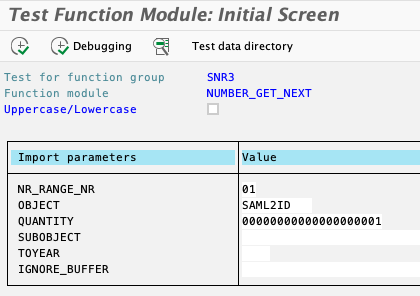

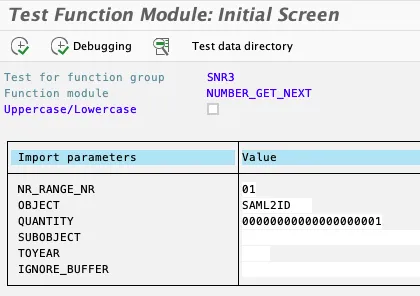

The function can be tested in transaction SE37.

Ein Bild, das Screenshot enthält.

Automatisch generierte Beschreibung

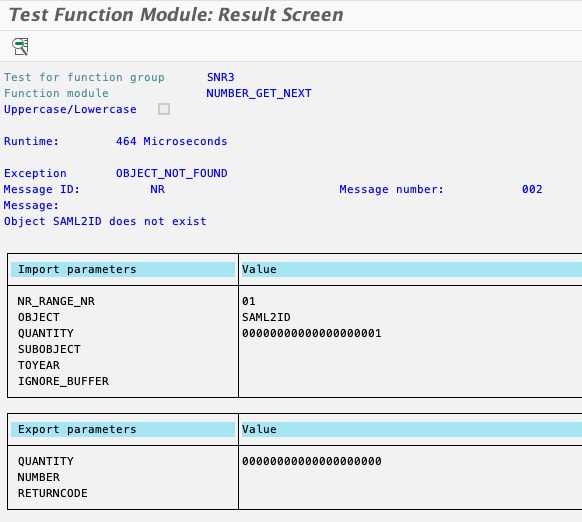

In case you pass the value SAML2ID as a parameter and get back an error message you have to configure the corresponding number range. If not, the method for creating a user with SAML 2.0 will fail.

Ein Bild, das Screenshot enthält.

Automatisch generierte Beschreibung

Error: OBJECT_NOT_FOUND

Root cause

You need to create the number range for the object.

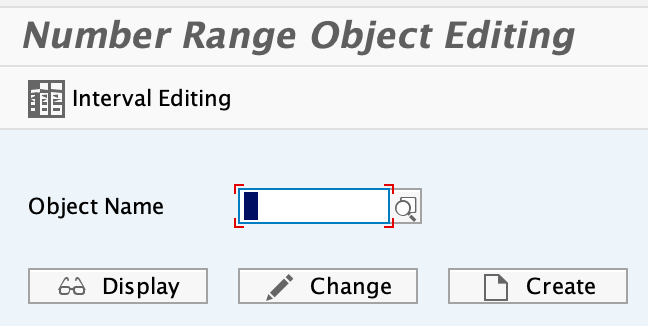

Tx: SNRO
Ein Bild, das Screenshot enthält.

Automatisch generierte Beschreibung

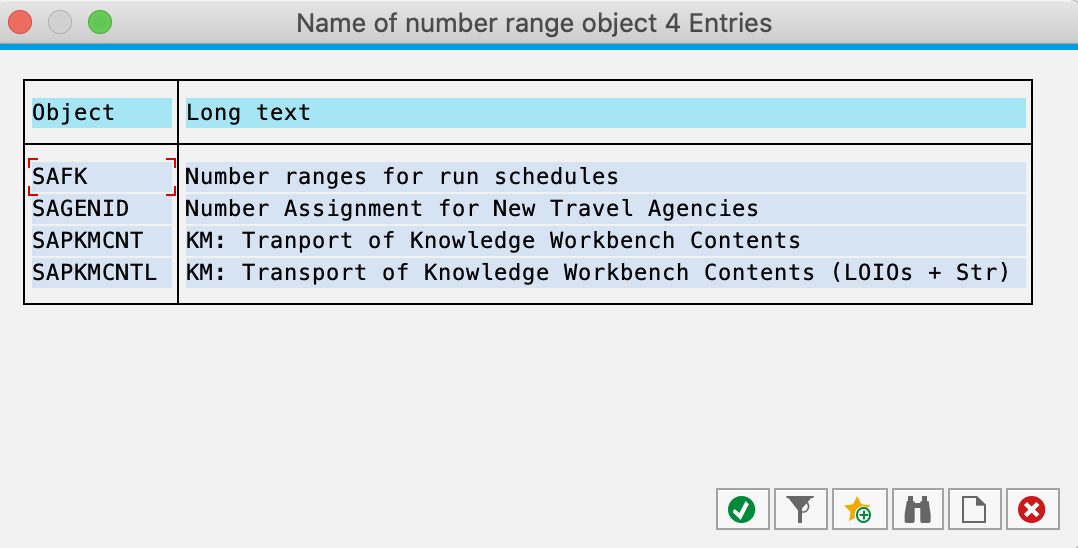

When you filter for the available objects (eg SA*), you can see that for SAML2ID nothing exists.

Ein Bild, das Screenshot enthält.

Automatisch generierte Beschreibung

Solution

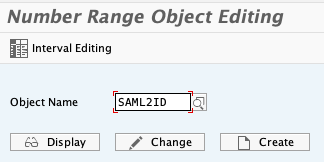

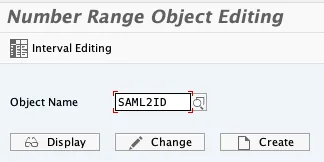

Create a new number range for object SAML2ID.

Object Name: SAML2ID
Ein Bild, das Screenshot enthält.

Automatisch generierte Beschreibung

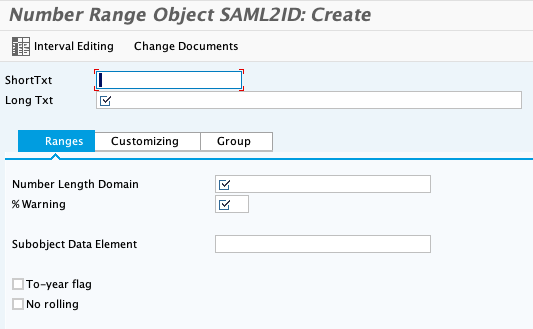

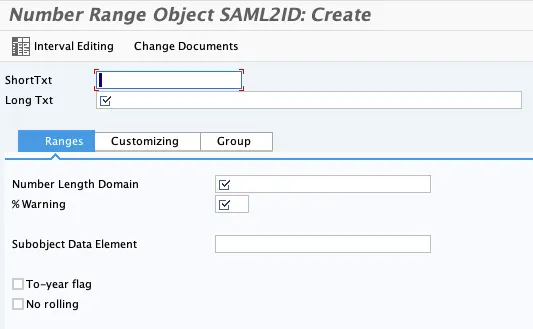

Create

Ein Bild, das Screenshot enthält.

Automatisch generierte Beschreibung
Ein Bild, das Screenshot enthält.

Automatisch generierte Beschreibung

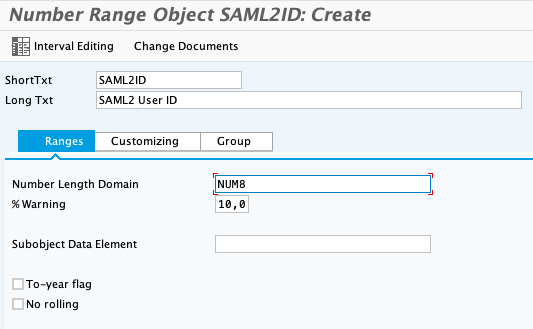

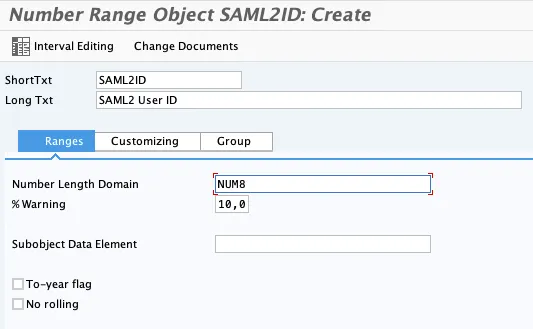

Short Text: SAML2ID
Long Text: SAML2 User ID
Number Length Domain: NUM8 (see explanation below)
% Warning: 10,0
Ein Bild, das Screenshot enthält.

Automatisch generierte Beschreibung

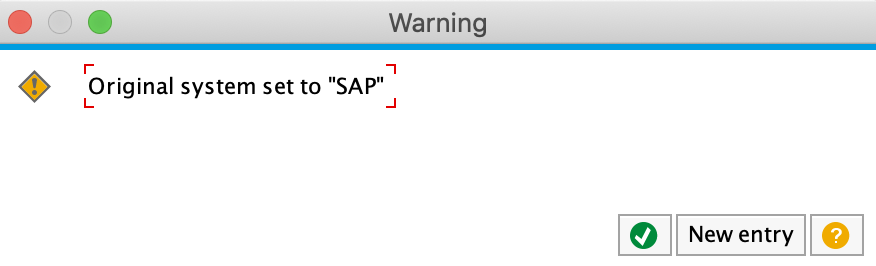

Save

Ein Bild, das Screenshot enthält.

Automatisch generierte Beschreibung
Ein Bild, das Screenshot enthält.

Automatisch generierte Beschreibung

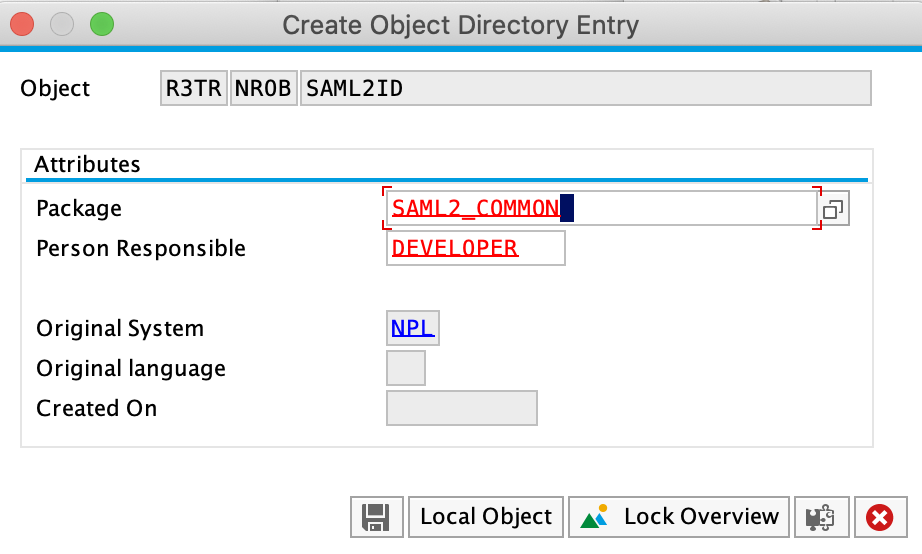

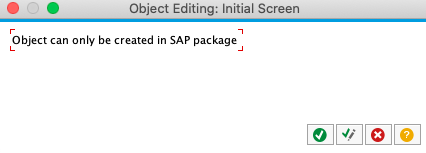

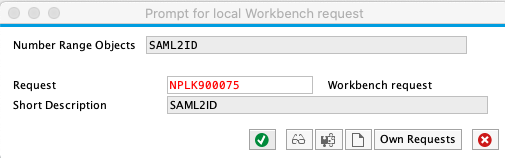

Provide a workbench request.

Ein Bild, das Screenshot enthält.

Automatisch generierte Beschreibung

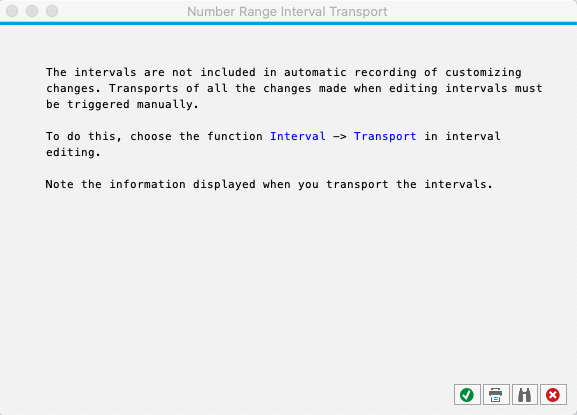

This should create a new number range for object SAML2ID. Next, add the interval

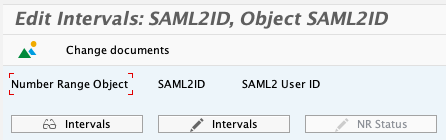

Click on “Interval Editing”.

Edit Intervals

Ein Bild, das Screenshot enthält.

Automatisch generierte Beschreibung

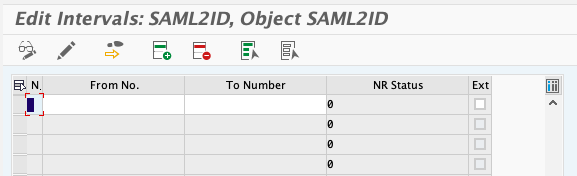

The screen for adding an interval is shown.

Ein Bild, das Screenshot, Uhr, Personen, Straße enthält.

Automatisch generierte Beschreibung

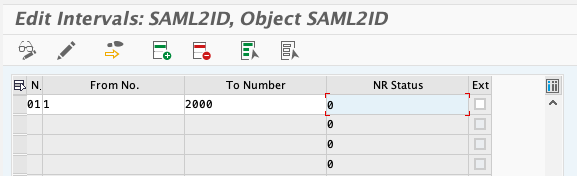

Add a new interval. The Nr is given again by the ABAP class: 01 (see explanation below).

Nr: 01
From No. 1
To Number: 2000
Ein Bild, das Screenshot, Straße, Personen, Stadt enthält.

Automatisch generierte Beschreibung

Save

Ein Bild, das Screenshot enthält.

Automatisch generierte Beschreibung

Result

Ein Bild, das Screenshot enthält.

Automatisch generierte Beschreibung

Number Length Domain

The num8 number domain is defined by the ABAP class.

lv_number TYPE num8,
CALL FUNCTION 'NUMBER_GET_NEXT'
EXPORTING
  nr_range_nr = '01'
  object = lc_number_range_object
IMPORTING
  number = lv_number
EXCEPTIONS
OTHERS = 1
