How to build your own Eclipse Theia application

Eclipse Theia is a modern cloud and desktop IDE platform. It allows you to build your own IDE application. What Theia offers is not a ready-to-run IDE, but a platform to build an IDE for desktop or cloud that can be adopted to match your personal or company requirements. In this blog post I’ll detail how I built my own IDE.

Pre-requirements

I am on Windows, therefore I’ll follow the instructions from Theia for Windows. To be able to build Theia on Windows, the following tools are needed:

• Node.js
• Yarn
• Git
• scoop

Scoop is used to install the dependencies. Just follow the build for windows instructions. If you do not have Administrator rights / user, most probably you won’t be able to install all dependencies.

Install scoop

Open PowerShell
iwr -useb get.scoop.sh | iex

If you have scoop already installed, update it.

Open PowerShell
scoop update

Install nvm

Open PowerShell
scoop install nvm
(or update: scoop update nvm)

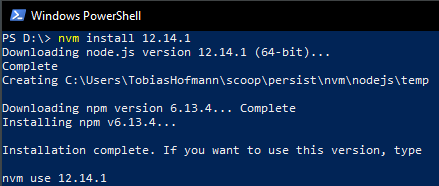

Install Node.js

Open PowerShell
nvm install 12.14.1

Use nvm

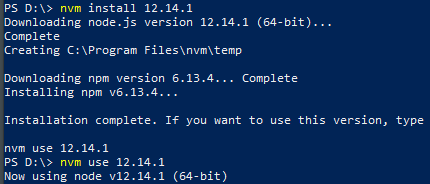

Open PowerShell
nvm use 12.14.1

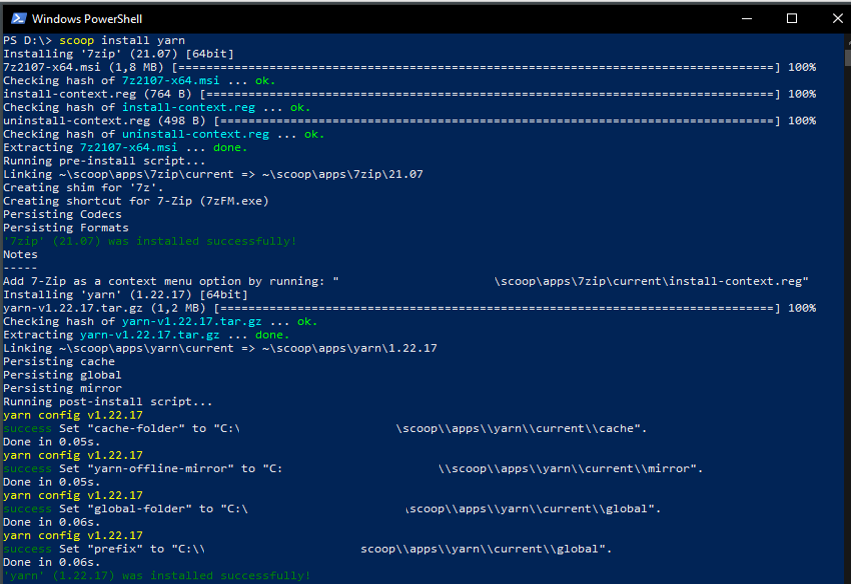

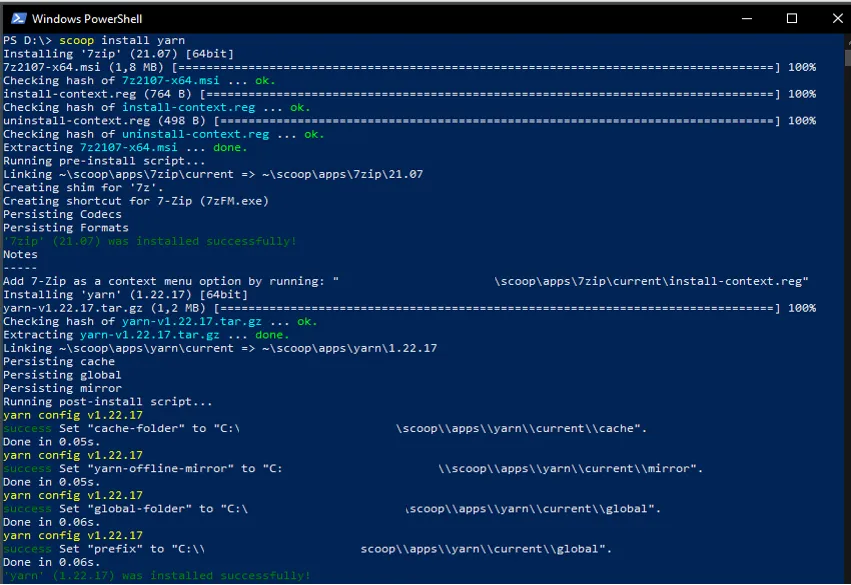

Install yarn

Open PowerShell
scoop install yarn

Install windows-build-tools

I guess that you might be able to skip this installation. Maybe you already have the Build Tools installed or the Node.js version comes already with build tools. But the Theia documentation states that this is needed. Maybe it is necessary, maybe not.

Your Admin user might not have the required Node.js version installed. Use nvm to install 12.14.1 for the admin user.

Open PowerShell with Administrator rights
nvm install 12.14.1
nvm use 12.14.1

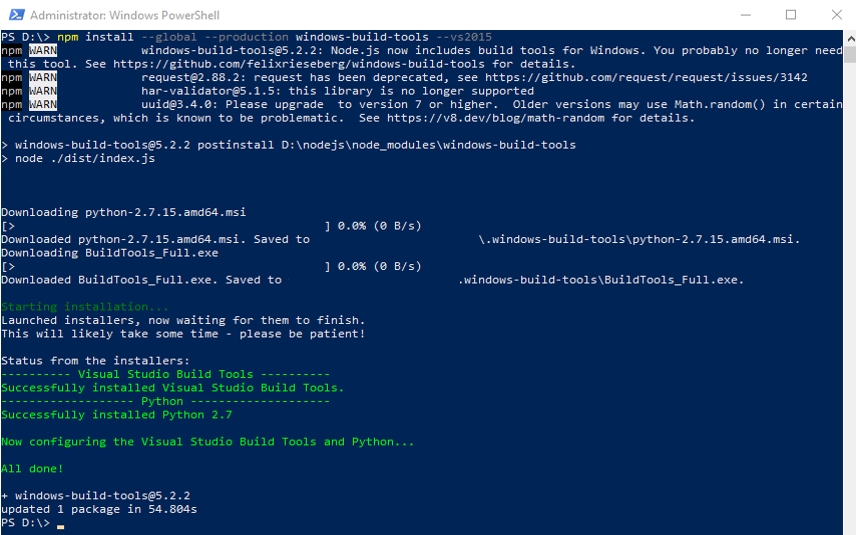

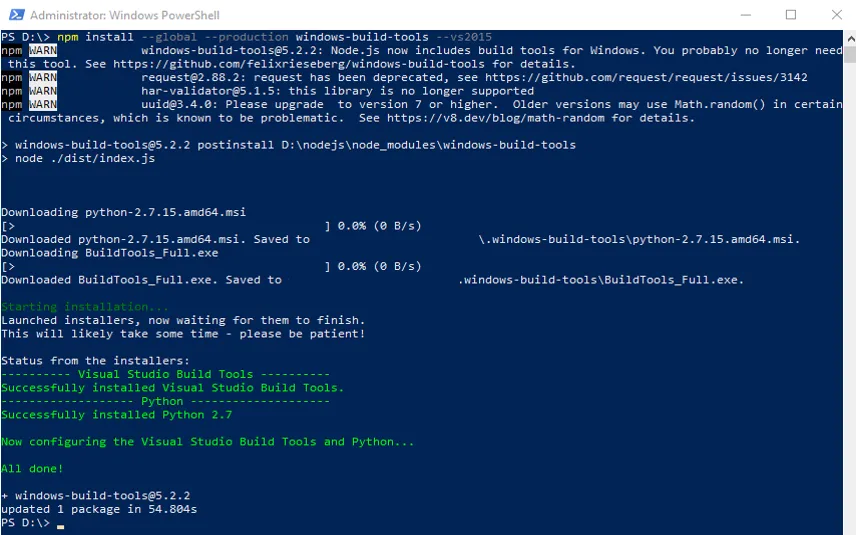

Install windows-build-tools. In my case using VS 2017 did not work. There are several issues reported related to this. Using 2015 did work. Installing it via chocolately might work too.

npm install --global --production windows-build-tools --vs2015cls

With the requirements installed a Theia application can be built. Clone the repository and use yarn to build your own IDE.

git clone https://github.com/eclipse-theia/theia

Build

You build your own Theia from source. This sounds more frightening than it is. For now, it is just to be able to access Theia running locally. No additional plugins or standalone app. With the source code cloned, all it takes is a few yarn commands.

cd theia

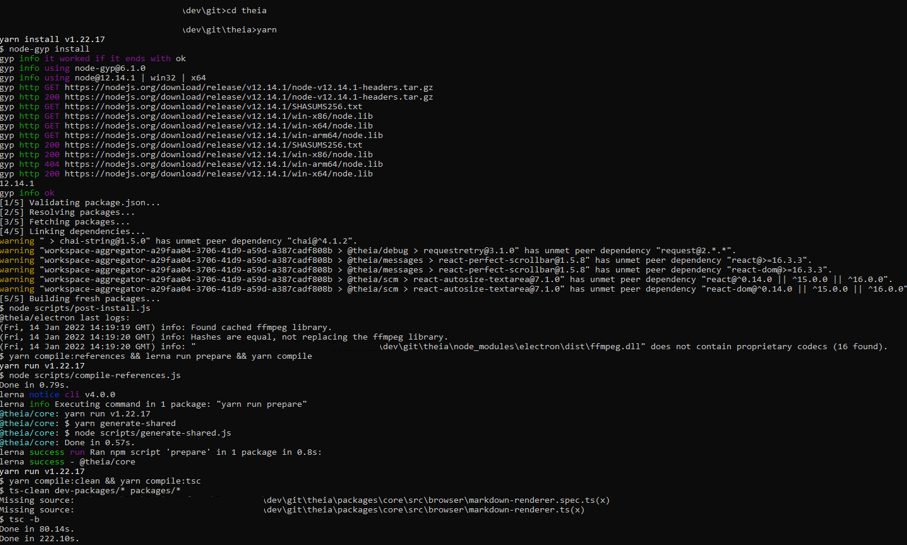

yarn

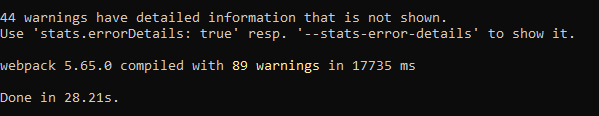

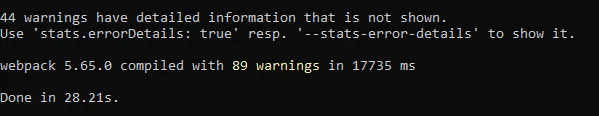

yarn browser build

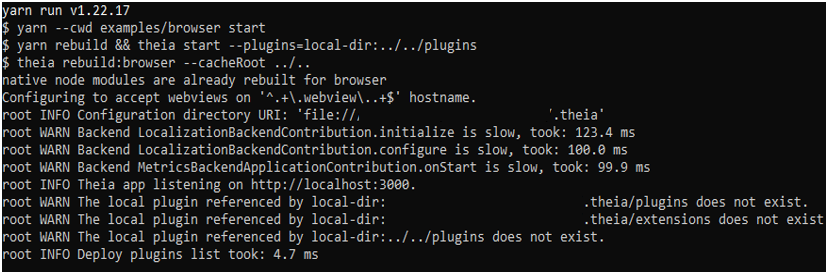

yarn browser start

Result

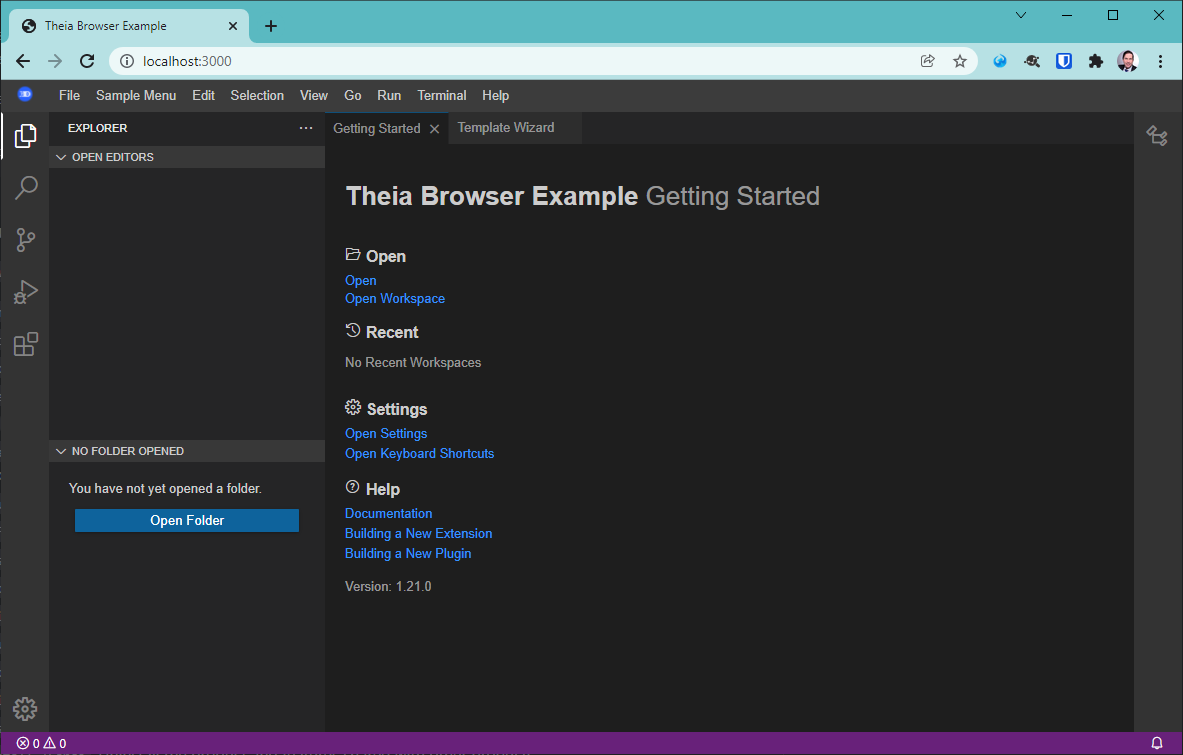

Theia can now be accessed via a browser at http://localhost:3000

Of course, this is just a very basic example. This Theia application comes only with the default plugins. To really benefit from this application, it is necessary to include additional plugins. In my case, plugins for Fiori development are missing.
