Setup OpenVPN server on Amazon EC2

Let the world know ...Tweet about this on Twitter
Twitter
Share on Google+
Google+
0Share on Facebook
Facebook
0Email this to someone
email
Share on LinkedIn
Linkedin

Recently I got some new hardware that I will use to run some useful software. To use the software from anywhere, I’ll need to have remote access. As I cannot do DMZ or port forwarding with my new internet provider, I decided to connect my home server using VPN to a access machine running on AWS.

The AWS EC2 Linux computer will serve as my entry point. Services running on the RP at home connected via VPN can be accessed from EC2. Other computers at my home cannot be accessed, as the IP is different and no route is configured.

This setup comes with several architectural questions to solve:

  • How to ensure the communication is secure?
  • How to guarantee the tunnel is up?
  • How to enable access from EC2 to the services running on the client?
  • The client must be assigned the same IP for the services be accessible from EC2
  • How to give access to the services from the internet?

The three top question will be answered in my next blogs about how to set up OpenVPN server and client. The first question is the easiest to answer: by using a VPN solution. I am going to use OpenVPN and this blog is about how to setup OpenVPN. I’ll cover the installation on the EC2 instance and on the Raspberry Pi, as well as the initial setup with the certificates, server and client configuration and how to connect. Starting the client and server as service keeps them running and in case the connection fails, an automatic reconnect is attempted. The EC2 instance can access the services running on the client automatically. The last two questions will be answered sometimes later.

OpenVPN Server

Install OpenVPN on EC2

The OpenVPN software is available in yum on EC2 Linux AMI. You may need to enable the REPL repository. I assume you did this already. The packages to install a openvpn and easy-rsa.

sudo yum update

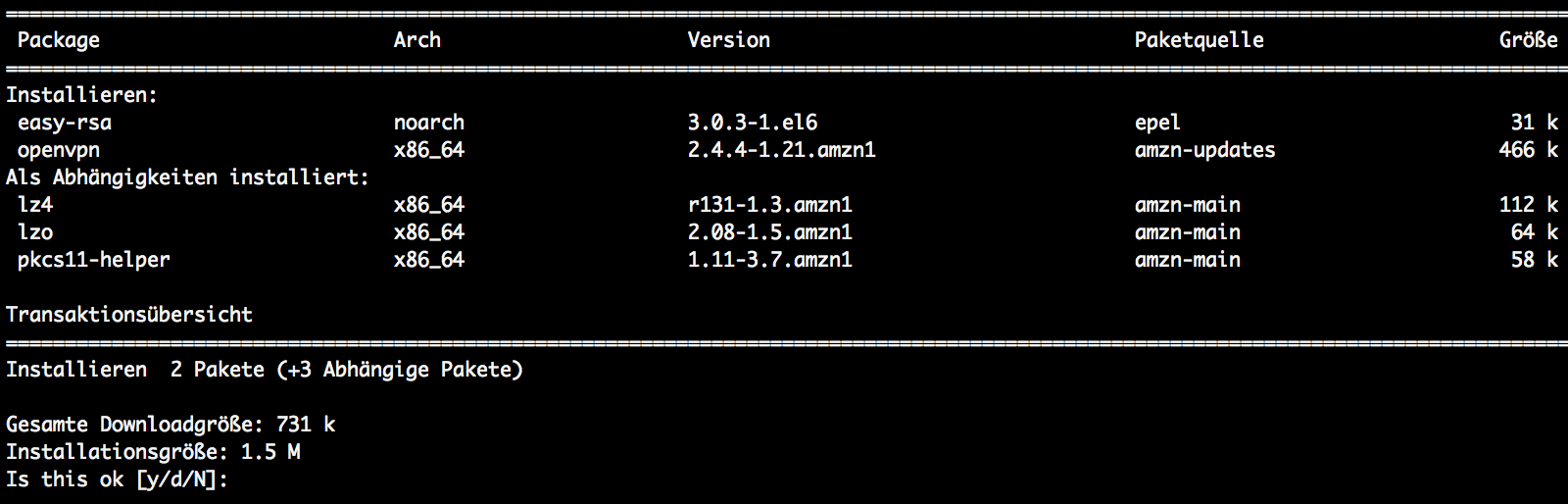

sudo yum install openvpn easy-rsa

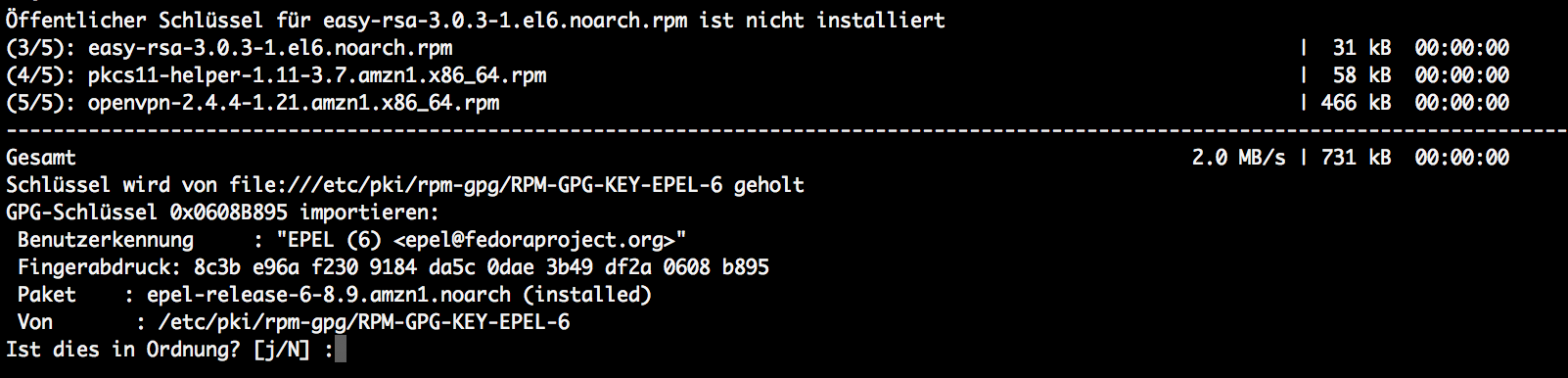

This will also install a public key to install a package and ask for your permission to do so.

The easy-rsa package is needed to set up a certificate authority. In case you do have a CA available, you can use your CA to generate the certificates used by OpenVPN. For those that do not have a CA available, take the easy-rsa functionality.

Generate CA

The command above installs easy-rsa 3.x. With 3.x, the way how to use easy-rsa and to set up a CA and issue the certificates changed. You can see in detail how to use easy-rsa 3.x at the documentation available at the GitHub project site.

OpenVPN uses certificates, and easy-rsa issues those certificates. Basically, you have two components of easy-rsa to deal with:

  • CA software
  • Certificates

Configuration of OpenVPN is put and read from /etc/openvpn. Easy-rsa software should be in a separate folder, like /home/ec2-user/easy-rsa, but to keep all in one place I’ll put easy-rsa inside the /etc/openvpn directory.

Note: for real productive usage, don’t do this. Separate easy-rsa executables and config files.

Copy easy-rsa

Copy easy-rsa to your selection location. For this, first find out where easy-rsa is installed.

repoquery -l easy-rsa

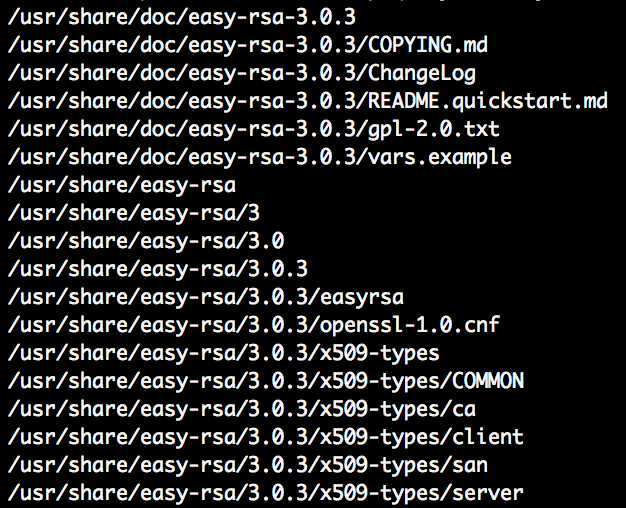

Location is /usr/share/easy-rsa/3.0.3. I’ll copy these files to /etc/openvpn/easy-rsa.

sudo mkdir /etc/openvpn/easy-rsa

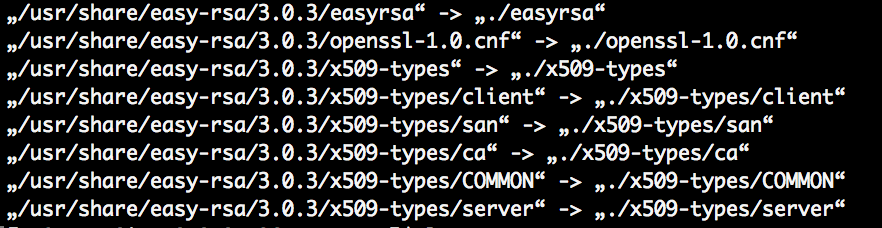

sudo cp -Rv /usr/share/easy-rsa/3.0.3/* .

Start easy-rsa

Follow the steps outlined at the easy-rsa git site. For the following steps, go into the directory where easy-rsa is installed.

cd /etc/openvpn/easy-rsa

Init PKI

sudo ./easyrsa init-pki

Build CA

This will create the CA certificate to sign certificate requests. In other words: whoever gets access to the private key of the CA created in this step, can create new valid OpenVPN clients for your setup. Take care of the CA certificate and key.

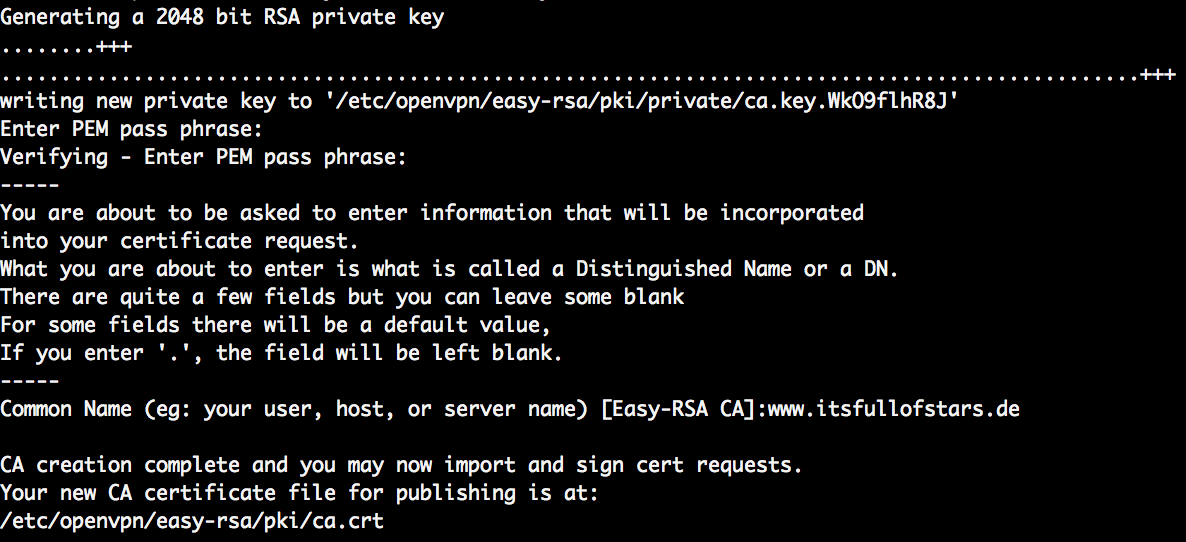

sudo ./easyrsa build-ca

You’ll need to enter:

  • PEM pass phrase
  • Common Name

The passphrase is used to unlock the private key and is an additional level of security. Even when someone gets a copy of the private key of your CA, without the pass phrase the key is not usable. The common name is used to identify the CA. I used the FQDN of my web server. After execution these two commands, the CA is initialized and can be used to issue certificates.

Diffie-Hellman

Generate Diffie-Hellman parameters.

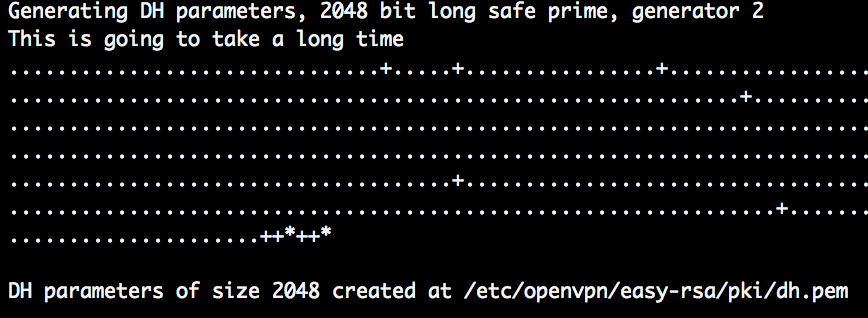

sudo ./easyrsa gen-dh

Generate OpenVPN server certificate

The OpenVPN server needs a certificate issued by the CA to identify itself against the clients. This is a nice “feature” when using PKI. Server and client can validate the other side. Both need just to trust the CA certificate for this. The difference between the two certificates (client and server) is the included type. This is done by including an additional value in the certificate specifying the type of certificate:

  • TLS Web Server Authentication for the server and
  • TLS Web Client Authentication for the client

Which kind of certificate is going to be issued is specified by the easy-rsa command when creating the certificate request.

Generate certificate request

Create a certificate request containing the identity information of the server and let this request be signed by the CA. By specifying the server parameter, the request is for a server and the CA will include the value TLS Web Server Authentication in the extension.

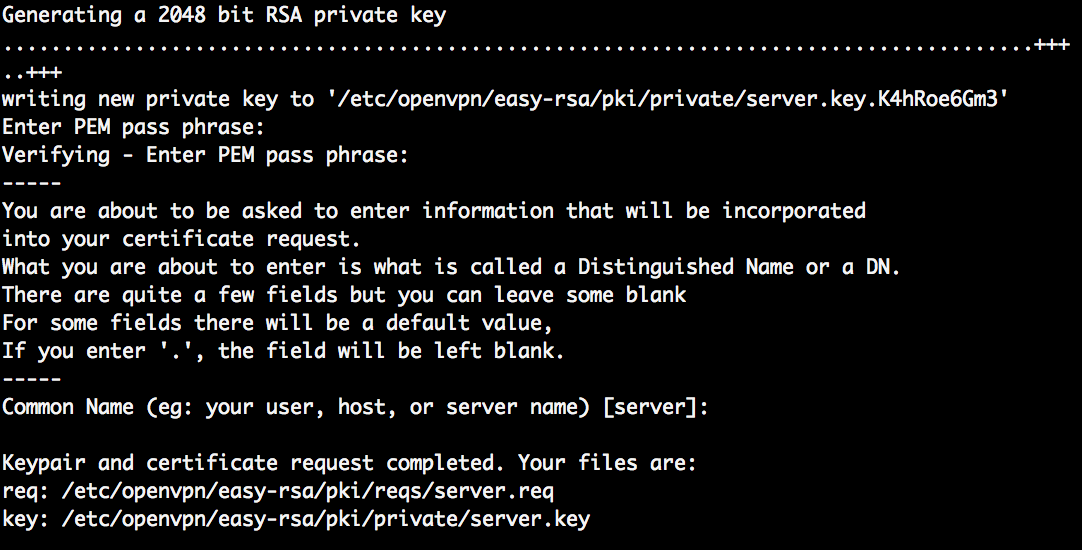

sudo ./easyrsa gen-req server

Inform:

  • Pass phrase
  • Common Name

As with the CA certificate, inform a pass phrase that adds additional security to the private key and a common name to uniquely identify the server. I used server as CN. Of course, it could also have been openvpn.mydomain.com or something else.

Sign request

Send the request to the CA and sign it to issue a valid certificate. With that, the CA information is added to the CA, making it official and clients that connect to OpenVPN server will know if they can trust the server. Only when trust is verified, a connection will be established between the server and client.

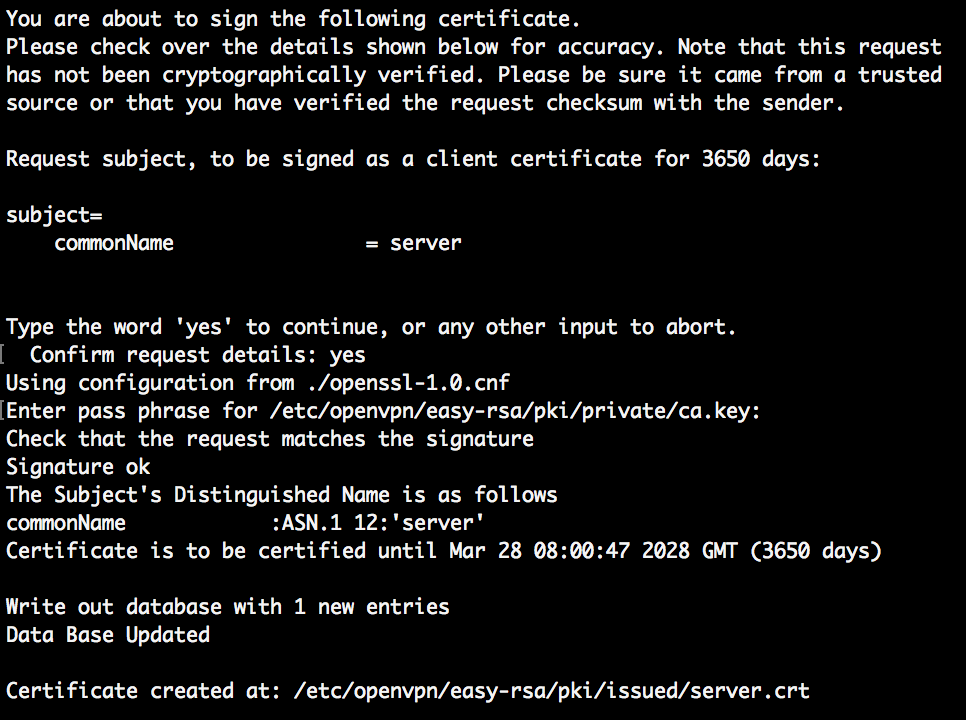

sudo ./easyrsa sign-req server server

You’ll need to confirm the request by typing yes and the pass phrase.

TLS-AUTH

The following certificate is needed to harden the overall security of OpenVPN. As OpenVPN is using TLS, it makes sense to add HMAC to validate integrity of the packages received. For this to work, a shared secret key is needed. This key will be written to a file named ta.key.

Generate ta.key

cd /etc/openvpn
sudo openvpn --genkey --secret ta.key
sudo mv /etc/openvpn/ta.key /etc/openvpn/easy-rsa/private

OpenVPN server configuration

Take a sample configuration file as a template. Can be found in the doc folder of openvpn. The sample configuration file for the server is server.conf, and for the client, client.conf.

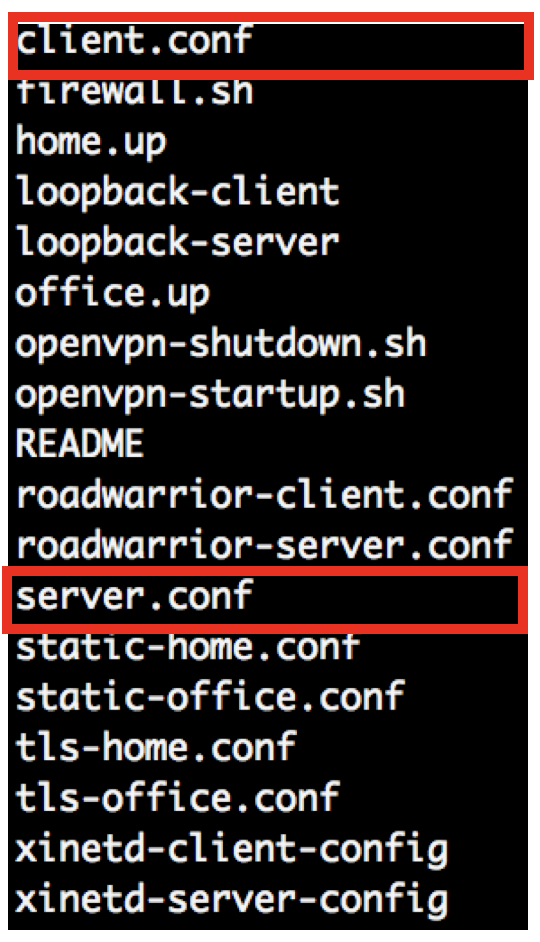

ls -1 /usr/share/doc/openvpn-2.4.4/sample/sample-config-files/

Copy server.conf to /etc/openvpn and edit the file.

sudo cp /usr/share/doc/openvpn-2.4.4/sample/sample-config-files/server.conf /etc/openvpn/
sudo vim /etc/openvpn/server.conf

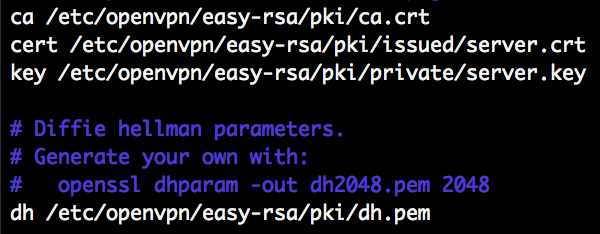

Adjust the path to the ca, cert, key and dh files

These parameters inform OpenVPN where the certificates and Keys are stored. The CA cert ca.crt is used to validate the client certificates. They must be issued by this CA. The server.crt and server.key are used by the OpenVPN server to encrypt traffic and authenticate itselfs against clients. Diffie hellman dh.pem is used to provide Perfect Forward Secrecy.

Start OpenVPN server

To start the OpenVPN server and to test the current setup, run the following command:

sudo openvpn /etc/openvpn/server.conf

During startup, you need to provide the passphrase of the server certificate.

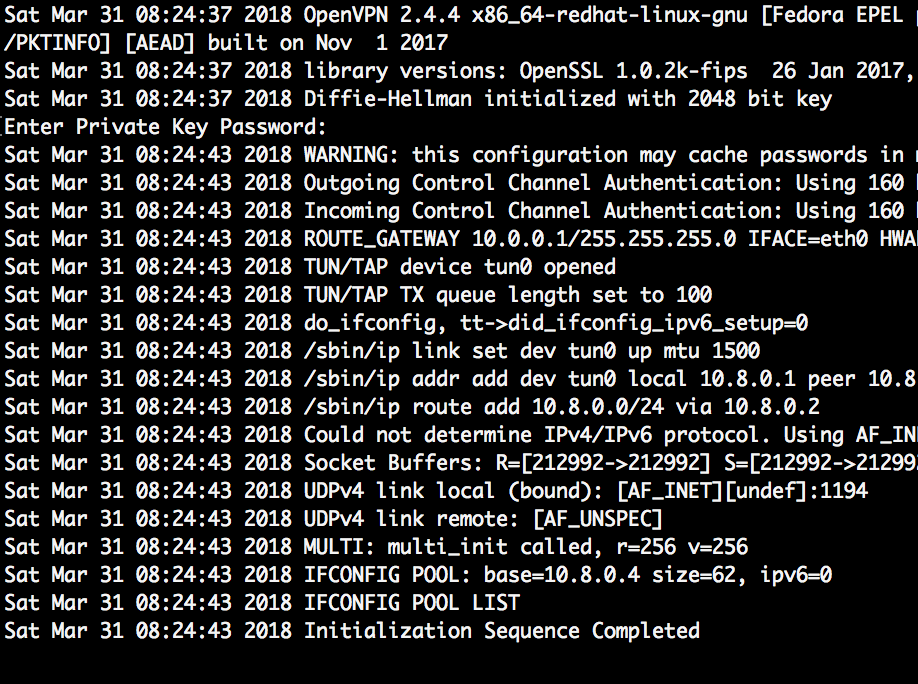

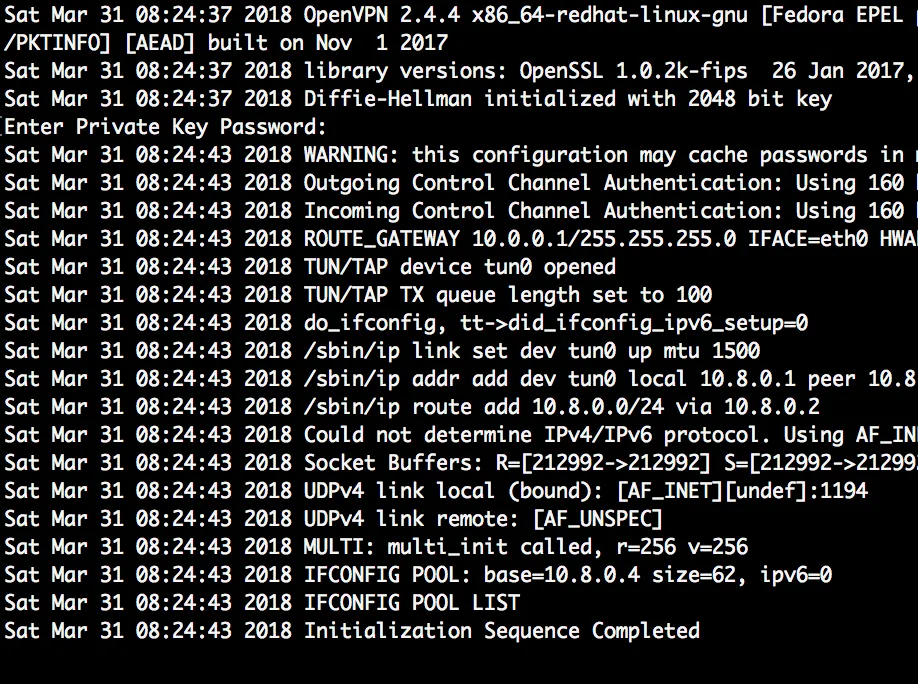

If all works, OpenVPN starts without erros: Initialization Sequence Completed. After this, the server is waiting for clients to connect.





Note:

If someone is reading my blogs for the last years you may remember that I have once written about setting up OpenVPN for accessing SUP on AWS. That blog was all about Windows and is outdated. I wrote it in 2012. But, as I published it once at SAP Community Network, it is not available anymore. SAP lost it during their last migration.
